16 Channels Logic Analyzer USB 2.0 Interface 100 Sampling Rate Ports PC Software for Timing Judgment and Analysis

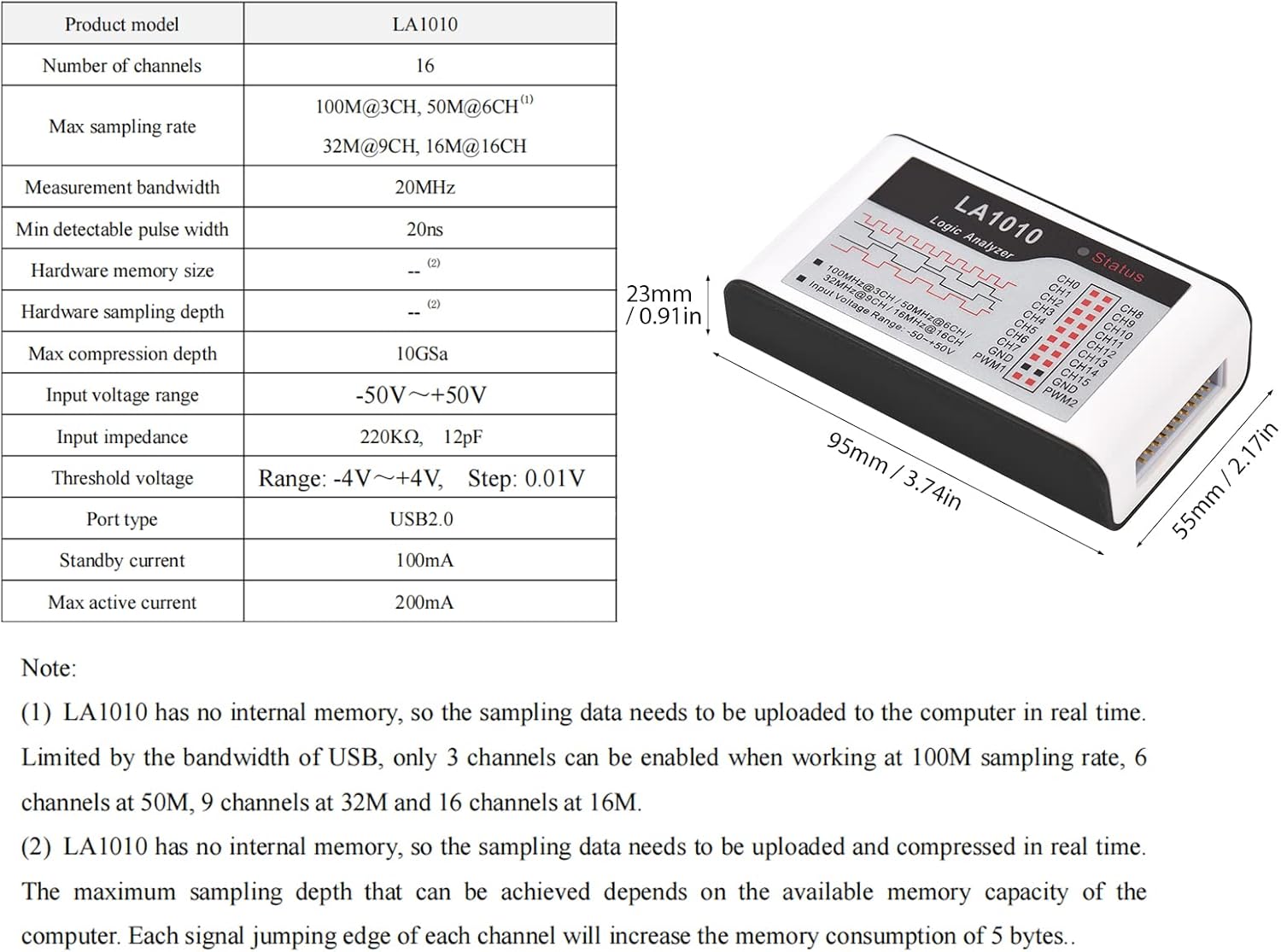

Logic analyzer is an instrument that collects and displays the digital signal from the system under test. It's mainly used for timing judgment and analysis. Unlike the oscilloscope with many vole grades, it has only two grades (Logic "1" and Logic "0") but can provide better accuracy, much more data and more complicated measuring methods. Note:1. The logic analyzer and the computer have the common GND. It it's connected to not isolated inverter equipment, frequency-cing equipment or 220V/ 380V direct power ply equipment, the logic analyzer or even the computer may be destroyed!2. Size and color may be sly different due to manual measurement and different conditions. Thank you for understanding. Specifications: Color: Grey Material: ABS Sampling Rate & Numbers of Channel: 100, 3 Channels 50, 6 Channels 32, 9 Channels 16, 16 Channels Measurement Bandwidth: 20 Min. Detectable Pulse Width: 20ns Max. Compression Depth: 10GSa Sampled Data Format: txt, csv, bin Decoding Data Display Format: Binary, Decimal, Hexadecimal, ASCII, ASCII & Hexadecimal Input Vole : -50~50V Input Impedance: 220KΩ, 12pF Adjustable Threshold Vole: -4~4V PWM Output: x 2 USB Interface: USB 2.0 Standby Current: 100mA Max. Active Current: 200mA Item Size: 95 * 55 * 23mm / 3.74 * 2.17 * 0.91in Package Size: 25.5 * 19.5 * 5.5cm / 10.04 * 7.68 * 2.17in Package Weight: 403g / 14.20oz Package List: 1 * Logic Analyzer with 20P Cable 1 * 9P Cable 1 * 2P Cable 20 * Connector 1 * USB 2.0 Cable (1.5m) 1 * Software CD 1 * User Manual (English)

• The kit includes a logic analyzer with 20P cable, 9P cable, 2P cable, 20 connectors, a 1.5m USB 2.0 cable, a software CD and an user manual.

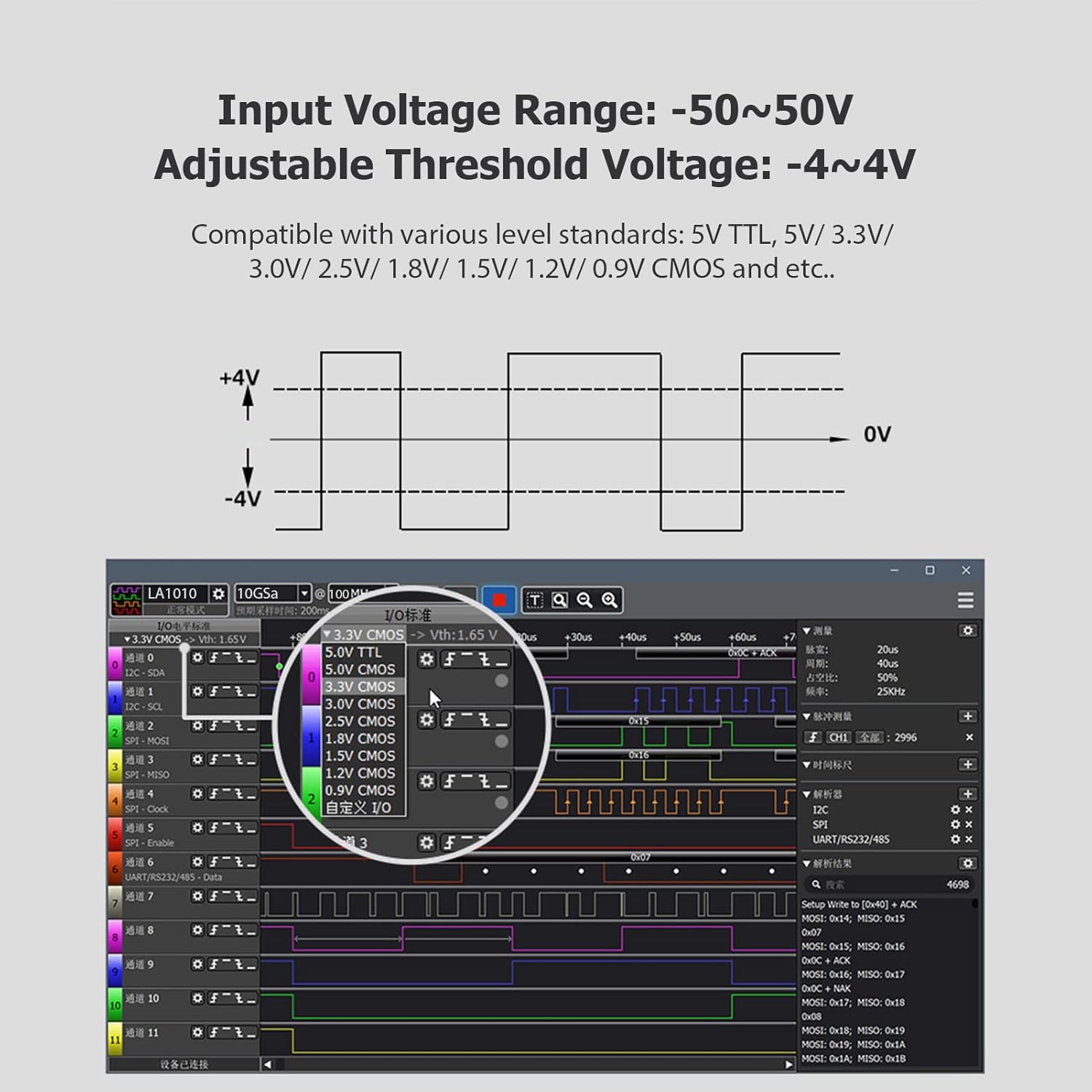

• The input vole is -50V to +50V, with adjustable threshold of -4V to +4V. Compatible with various level standards: 5V TTL, 5V/ 3.3V/ 3.0V/ 2.5V/ 1.8V/ 1.5V/ 1.2V/ 0.9V CMOS and etc..
• USB 2.0 data transmission, real-time upload of sampling data to the computer, the higher the sampling rate, the less the channel number.

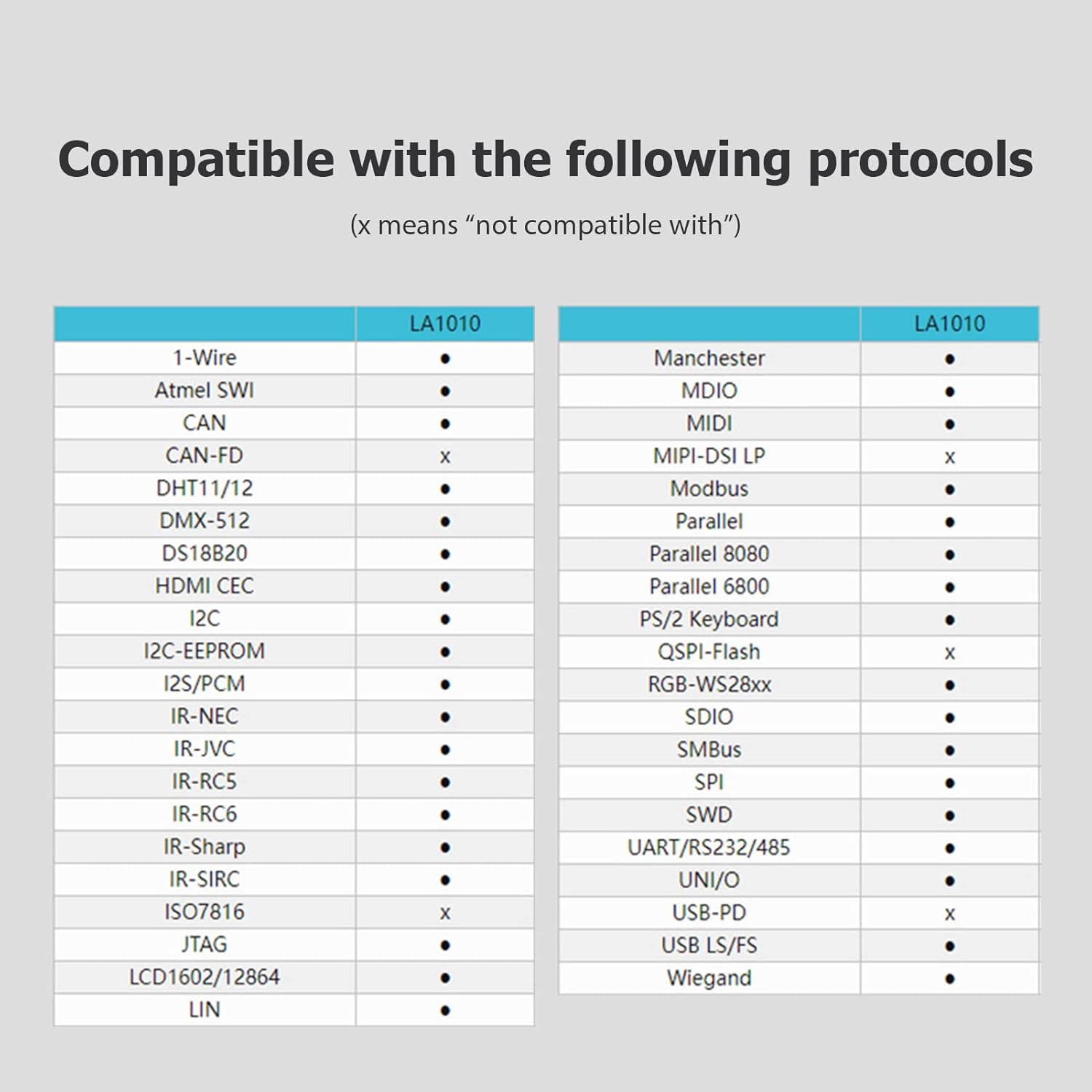

• The sampled data can be exported to the format of txt, csv, bin, etc., the decoding data display ports the format of Binary, Decimal, Hexadecimal, ASCII, ASCII & Hexadecimal.
• Mulle measuring functions in the computer software; linkage between form window and analysis window for convenient data checking and analysis.
