4501/4502/4510 Desktop Digital Meter Capacitance Resistance Impedance Capacitance Inductance Measure Instrument Tools Versatile Applications(4501)

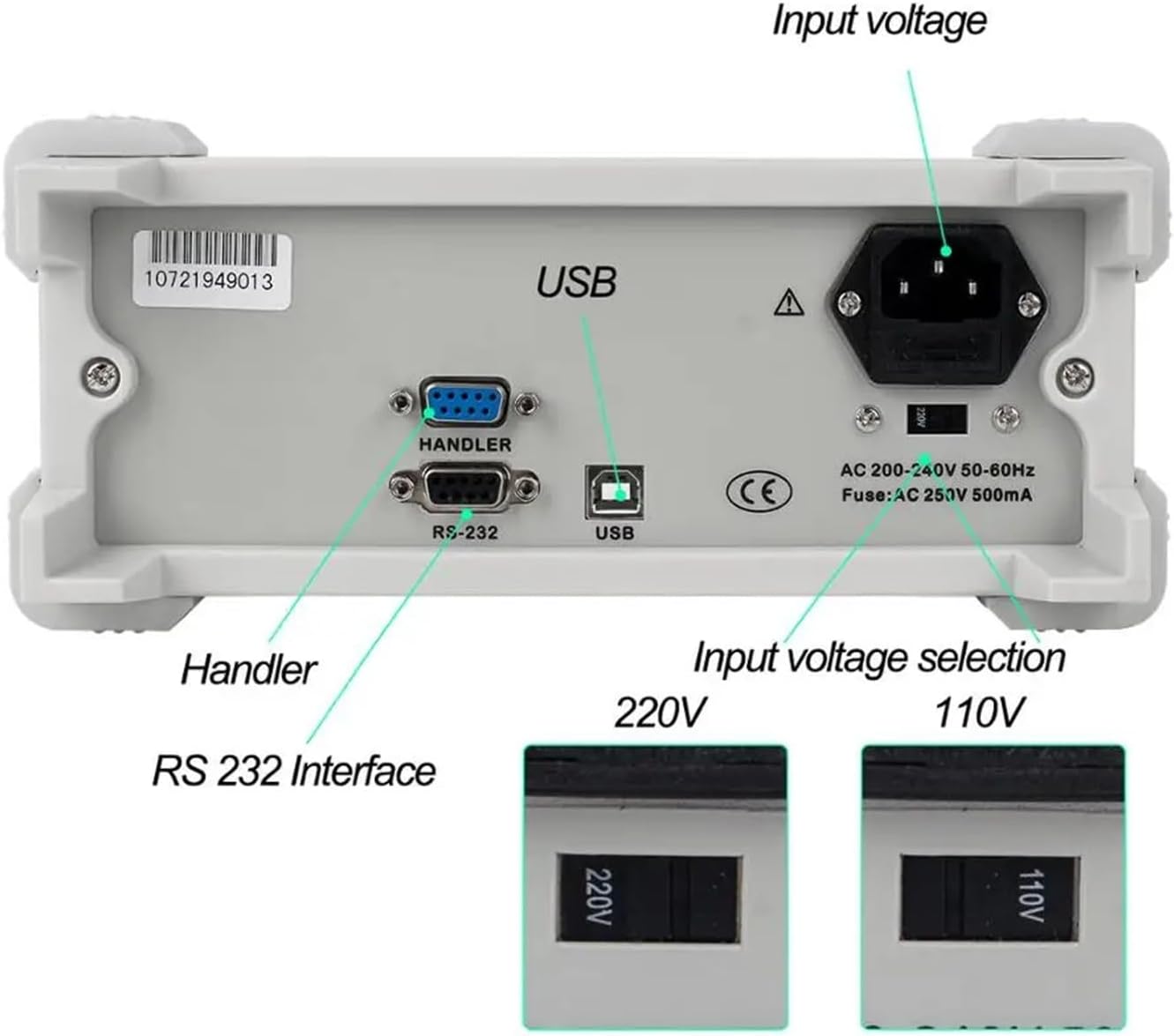

Features:Support the measurement of DC resistance and electrolytic capacitorInternal bias voltage output (1mV-1500mV)Automatic identification of component measurementUSB, RS232 communication interface, Handle sortingData recording function (maximum and minimum values, average value)Support SCPI communication protocolComparator has sorting and alarm functionProvide a variety of test portsSpecifications:Digits Main parameter: 5 digits; secondary parameter: 5 digitsMeasurement Parameter Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESRMeasurement Range(L) 0.01μH - 9999HMeasurement Range(C) 0.01pF - 99999μFMeasurement Range(R) 0.0001Ω - 99.99MΩBasic Accuracy 0.2%Measurement Display Speed 2 times/second (slow), 4 times/second (medium speed), 8 times/sec (fast)Internal Bias 0-1500mV adjustable, 1mV steppingTest Level 100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mVCorrection Function Open circuit correction, short circuit correctionScreening function The screening limit can be set from -50% to + 50% with fixed points of 1%, 5%, 10% and 20%Selection of comparator Five gear sorting, third gear qualified, one gear failed, one ancillary gearCommunication Interface Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB HostOthers Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness, optional in English and Chinese<;80%.<;80%.Dimensions: 265mm * 105mm * 305mm (width * height* depth).Mass: 2.3kg.Power consumption:

• 1. 3.5-inch TFT display, 5 and a half bits display
• 2. Provide system settings, which can configure language, buzzer, screen brightness, etc according to the needs of users
• 3. Basic accuracy 0.2%
• 4. Manual and automatic range
• 5. Be equipped with open circuit and short circuit correction
