Automatic Label Dispenser - Industrial Label Machine with Smart Sensor- Label Dispensing Machine for Printed, Translucent and Opaque Labels - (120 MM Width)

Spec Product name: label peeling machine Automatic counting: yes Label length: 5-120mm Label width: 5-150mm Label peeling speed: 250cm/min Applicable label outer diameter: maximum φ250mm Suitable for drum inner diameter: φ20-76mm Machine dimensions: 270*290*260mm (L*W*H) Voltage: AC110/220V 50/60Hz Machine net weight & gross weight: 6Kg&6.6Kg/pcsOperation use 1. Load the label roll into the label roller and fix it by the left and right splints. 2. Pull out the label through the guide limit rod, turn the ratchet through the peeling plate, roll it back to the take-up shaft and insert the u-shaped plug to fix it. 3. Turn the length knob and speed knob to the far left. 4. Turn on the power switch. 5. Adjust the light opening position and the sensing distance to ensure that the indicator light is on when the label is above the sensor. 6. Adjust the length knob and speed knob to the right to the appropriate end position.Box contents 1 automatic label dispenser 1 x set of accessoriesDescription: 1. The product is measured by hand, there may be a small error of 1-3 cm. 2. There may be inconsistencies due to shooting angle and lighting problems.

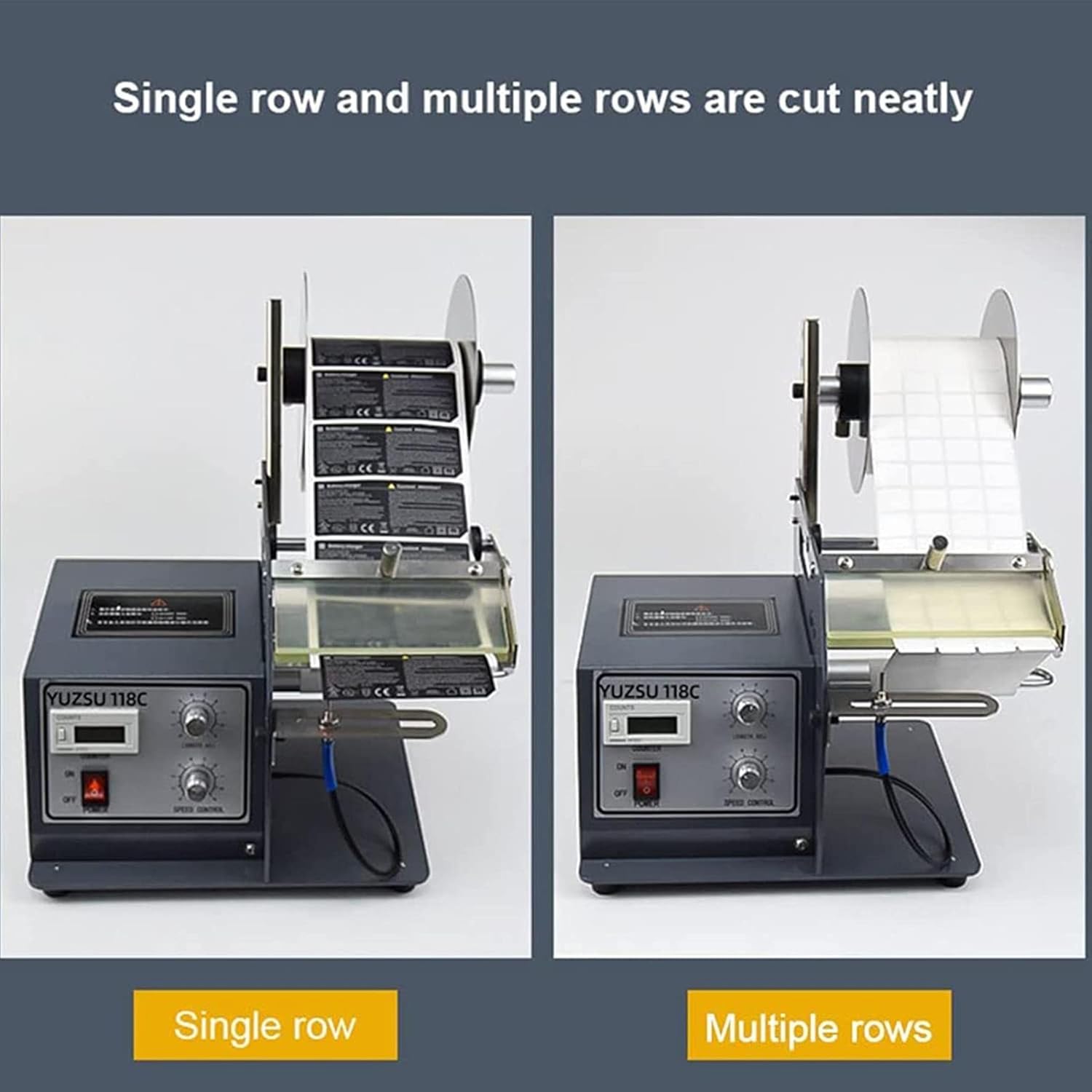

• ▶【Automatic Label Dispenser】: Electronic control system. After removing the first label, the second label is sent automatically, and multi-row labels can be peeled off at one time. The automatic sensor can quickly detect and strip the label. This machine can reduce unstable factors in the artificial operation and improve work efficiency.
• ▶【Automatic counting Function】: Automatic counting, the LED display will clearly show the numbers of dispensed labels, convenient for production management automation. And you only need to press the button If you want to restart counting.
• ▶【Small label dispenser】: There are two adjustment knobs on the labeling machine, one is speed control (98 inchs/min), the other is length control, Applicable label length: 5-150 mm/0.19-5.9inches; Width: 5-160 mm/0.19-6.3inches; Inner Diameter Min: 20mm; Max.OD of Roll: 200mm

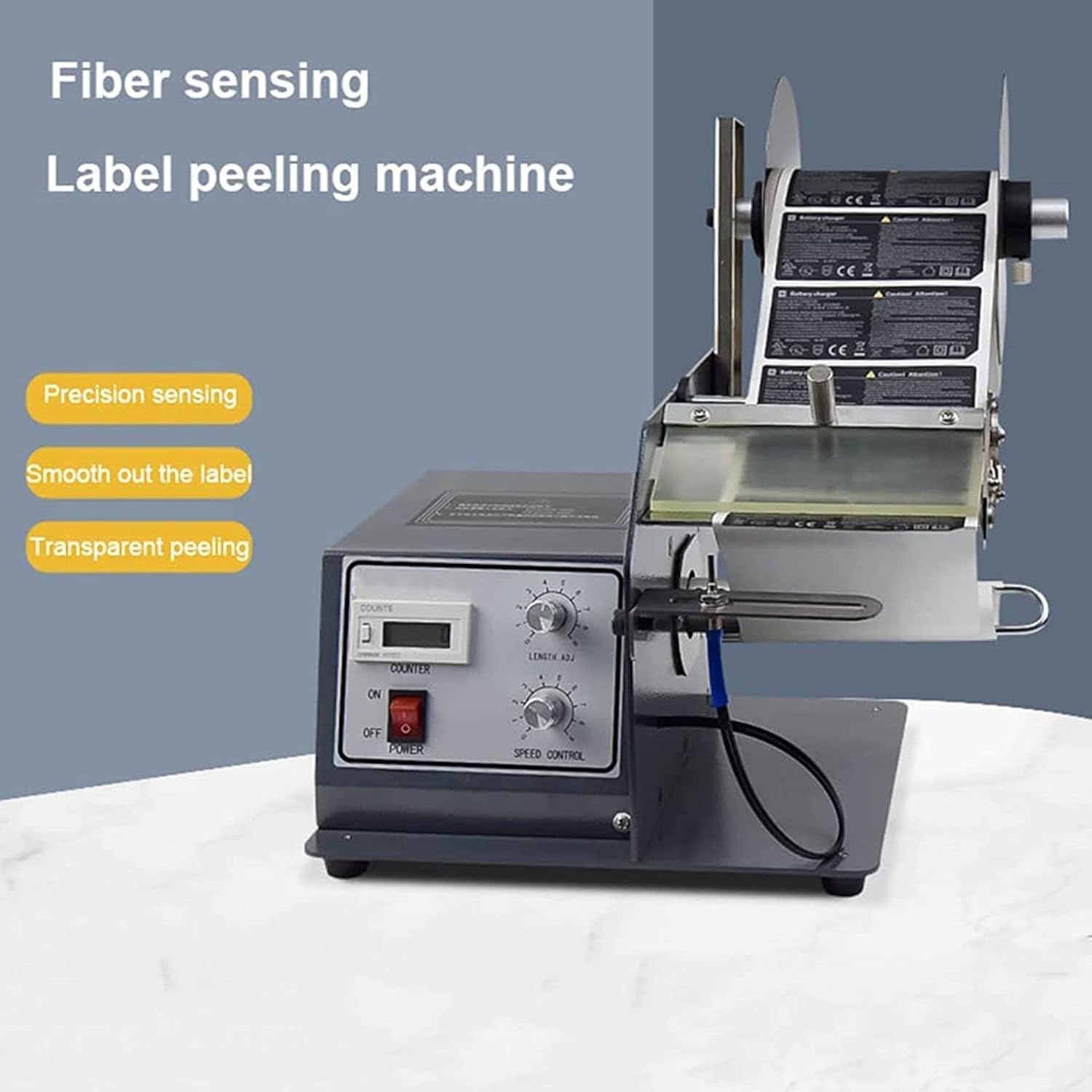

• ▶【Wide range of applications】: Sensors that can recognize many other machines on the market cannot recognize transparent labels, and can also peel off trademark labels, chrome-plated paper labels, self-adhesive labels, barcode labels, and color labels. It is best for industries such as clothing, electronic appliances, sand chemical-pharmaceutical industry.
• ▶【 after-sale protection】:Please make sure of the good condition of the package before receiving the item. Any of the questions, please contact the customer service. Any questions you meet, please feel free to communicate with the customer service
