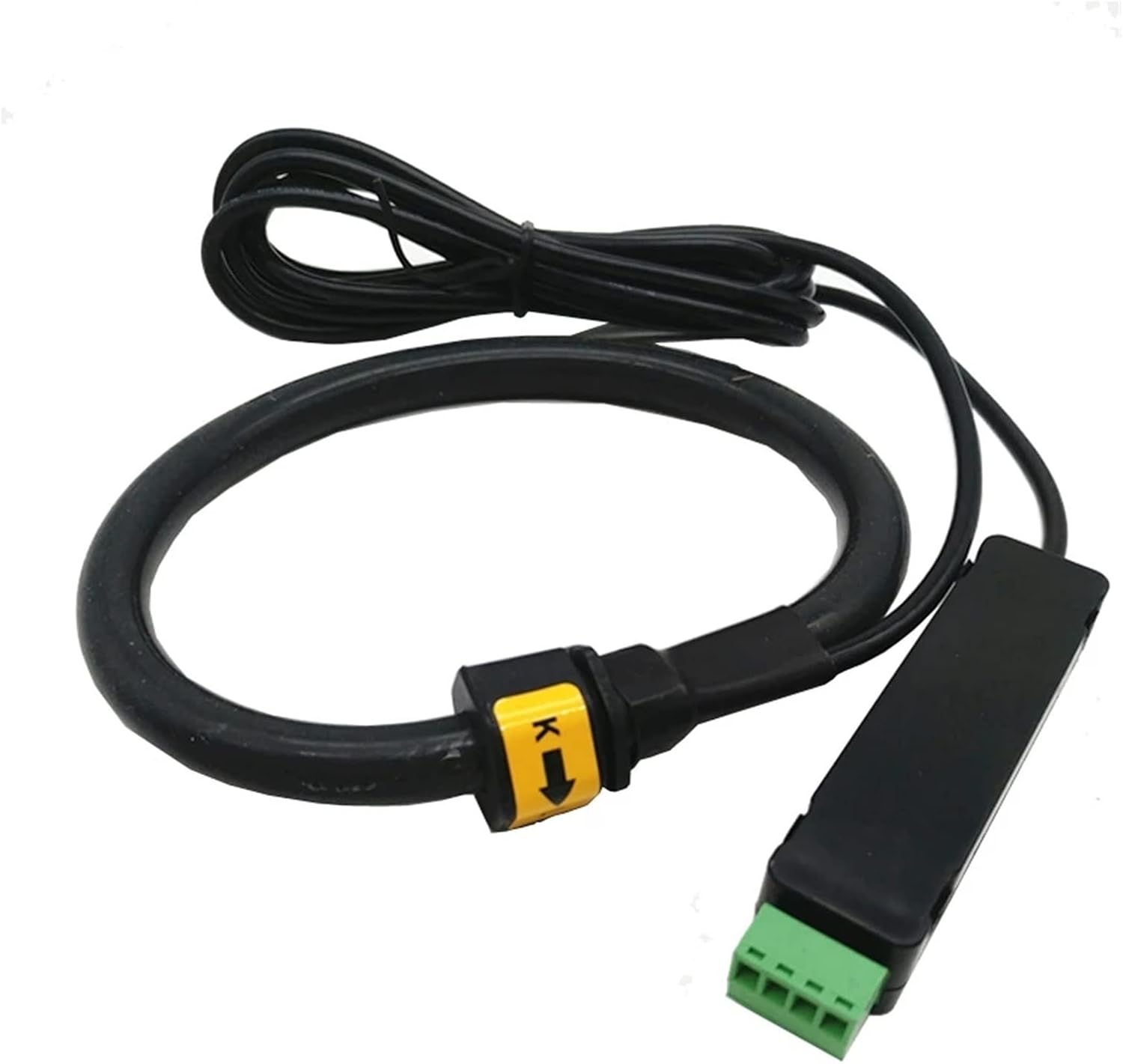

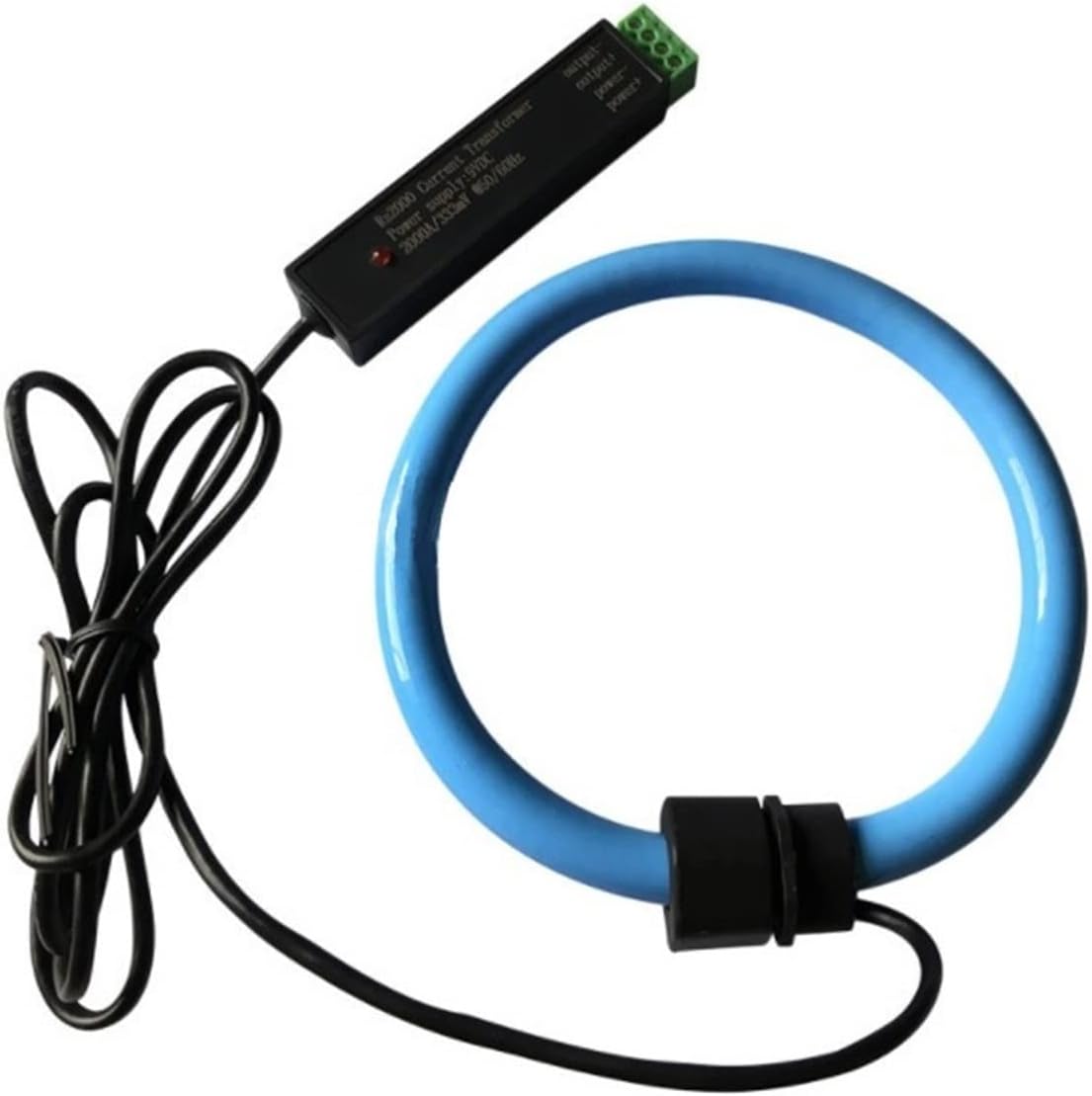

Current Sensor Rogowski coils/Flexible Rogowski Coils 10A-200kA with 0.33v /0.5v /1A/4-20mA Output(2000A 333mV 21cm)

Isolation Transformers0-100mv(withoutintegrator)0-5Vac(withintegrator)4-20mA(withintegrator)333mV(withintegrator)(optional)DescriptionCoil current sensors are designed for fast and easy installation on existing primary conductors/BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring thatthe primary conductor be taken offline and disconnected for the current sensor installation. This method providesfor the safe, easy and portable measurement of current.A current sensor that is based upon the Coil principle offers significant advantages over the standardmagnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core,magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportionalincreases in secondary signal outputs) is avoidedSpecificationFeatures:. Capable of accommodating a range of primary conductor sizes.. Characterized by high sensitivity, accuracy, linearity, minimum phase shift.. Suitable for harsh operating environments (temperature, humidity, ).. Current Range: 100A to 100kA<; 1%<; 1 degrees at 50/60Hz (. Phase Shift: 0.5 degrees typical) /li>. Linearity: ±0.2% from 10% to 100% of rated primary current. Primary Conductor Position Sensitivity: ± 2% maximum. Influence of External Field: ± 1.5% maximum. Coil Working voltage: 1000VRMS or 1000VDC. Coil Dielectric Surge Withstand: 5kVRMS for 1 minute. Operating temperature: -20ºC to +60ºCRated current (rms):200A500A1000A2000A4000A5000A10000A(optional,customizable)Output:0-100mv(withoutintegrator),0-5Vac(withintegrator),4-20mA(withintegrator),333mV(withintegrator)(optional)Power supply:12-24VDCCoil length:210mm,350mm, 420mm, 510mm(Optional)Tube:UL materialWire lead:Shielded cableIsol
