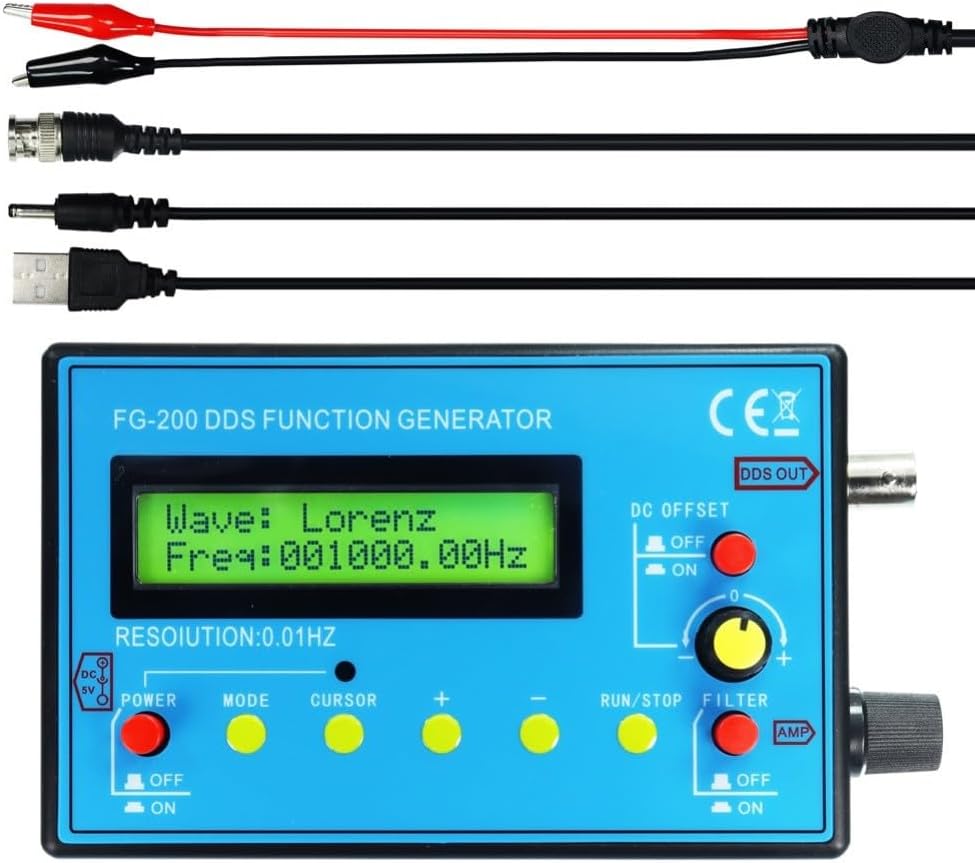

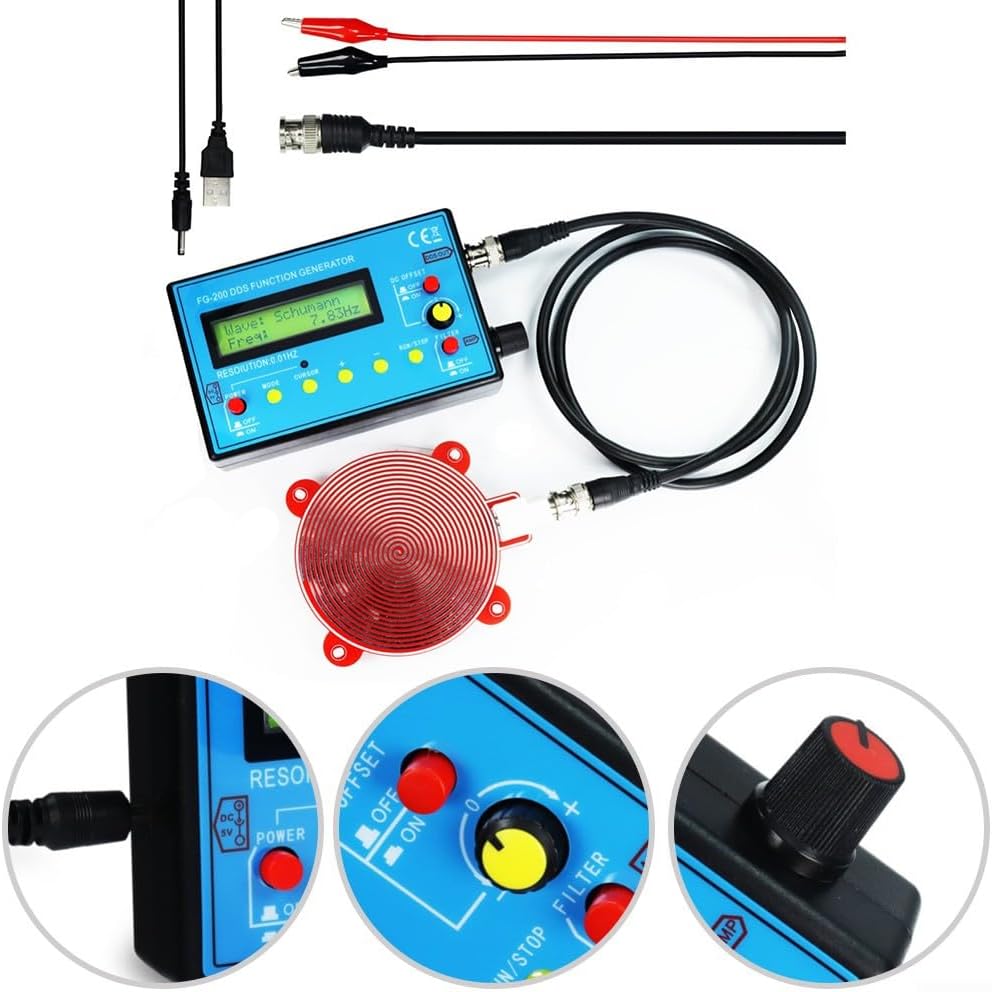

DDS Signal Generator FG-200 Module Function Generator 0.01Hz-500kHz Frequency for Electronic Engineering Labs Oscilloscope Probe Calibration(B)

Features:Fully functional, easy to operate, and portable. Can be powered by a power adapter or a 3.7V lithium battery. When used with an oscilloscope, it can be used for electronic circuit testing and debugging, frequency response and impulse response testing, and audio measurements. Due to its excellent accuracy and frequency stability, the DDS is also for ideal for oscilloscope sweep time factor calibration. Its square wave output is suitable for adjusting the pulse characteristics of oscilloscope attenuators and probes.Output Waveforms: Sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, ECG waveform, exponential rising wave, exponential falling wave, Lorentz pulse, Gaussian pulse, sine pulse, half wave, full wave, for-Schumann wave, noise waveform, and 15 other waveforms.Power Supply: DC 4-9V (DC 5V is recommended when using an adapter; 3.7V lithium battery is recommended when using battery power). DC power interface: 3.5mm². Current: 180mA at 5V.Frequency Range: Sine wave 0.01Hz-500kHz (higher frequency, smaller output amplitude), other waveforms 0.01Hz-100.00kHz (unlimited adjustable frequency range; if distortion and jitter requirements are not high, the frequency can be further increased).Specifications:Part Name: FG-200 Module Function Information - Signal GeneratorMaterial: ABSColor: BlueSize: 13*8*3cmResolution: 0.01HzSine Distortion: <1% below 1kHz, <0.5% above 1kHzOutput Amplitude: ±10V (peak-to-peak)Output Impedance: 50ΩDC Offset: Maximum 10V, with power-off functionPackage Contents:A: 1*Signal Generator + 1*USB Power Cable + 1*BNC ClipB: 1*Signal Generator + 1*USB Power Cable + 1*BNC Clip + 1*Double-ended BNC Wire + 1*for-Schumann Wave Module Antenna

• Versatile Waveform Output & Broad Applications
• This DDS signal generator produces 15 distinct waveforms including sine wave square wave triangle wave sawtooth wave and ECG wave. It is a suitable tool for various electronic testing scenarios such as circuit debugging frequency response analysis audio measurement and oscilloscope sweep time calibration.
• Wide Frequency Range & High Stability
• Experience a wide frequency spectrum from 0.01Hz to 500kHz for sine waves and up to 100.00kHz for other waveforms. The Direct Digital Synthesis technology provides excellent frequency stability and resolution of 0.01Hz for precise and reliable testing outcomes in your projects.
• Adjustable Output & Clean Signal
