Digital Handheld Micron Gauge (Range: 0 to 18000 Microns) Large Display for Refrigeration System, Vacuum Pumps. Model : Refco
Product details
| Management number | 221497631 | Release Date | 2026/05/03 | List Price | $110.00 | Model Number | 221497631 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

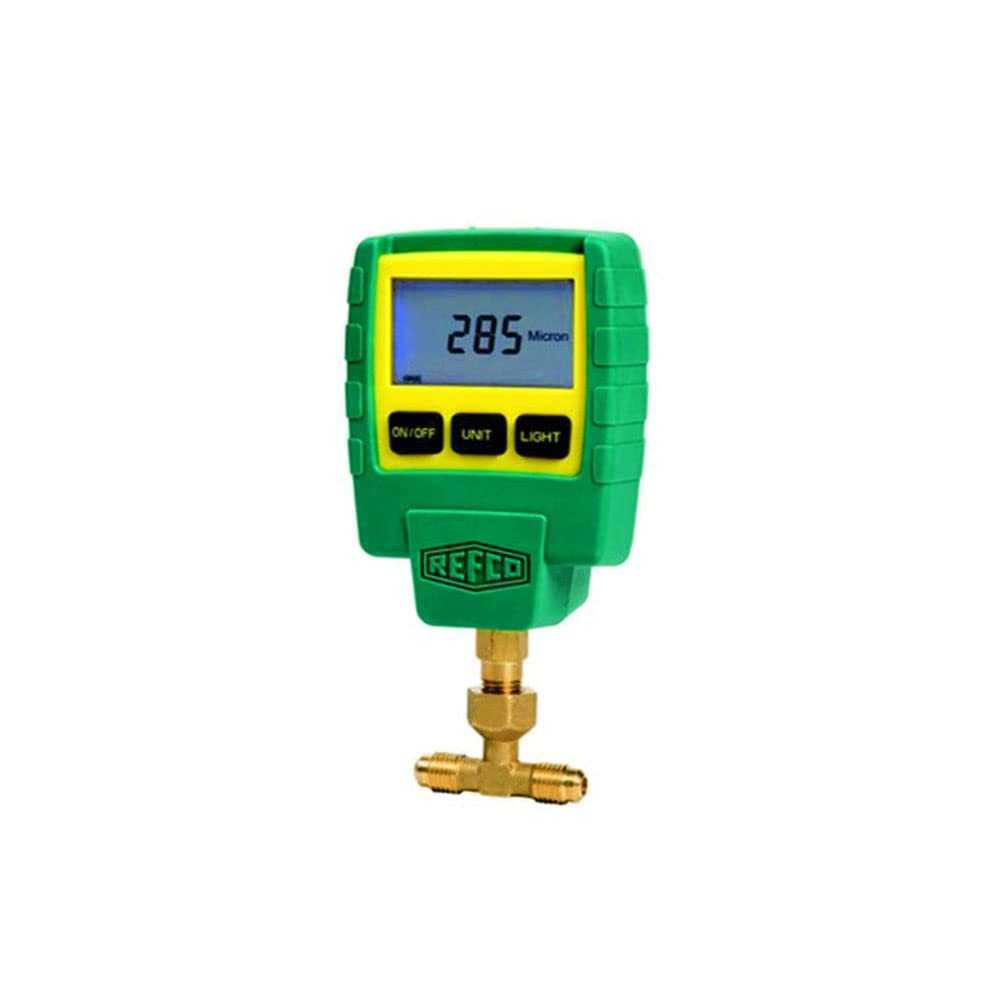

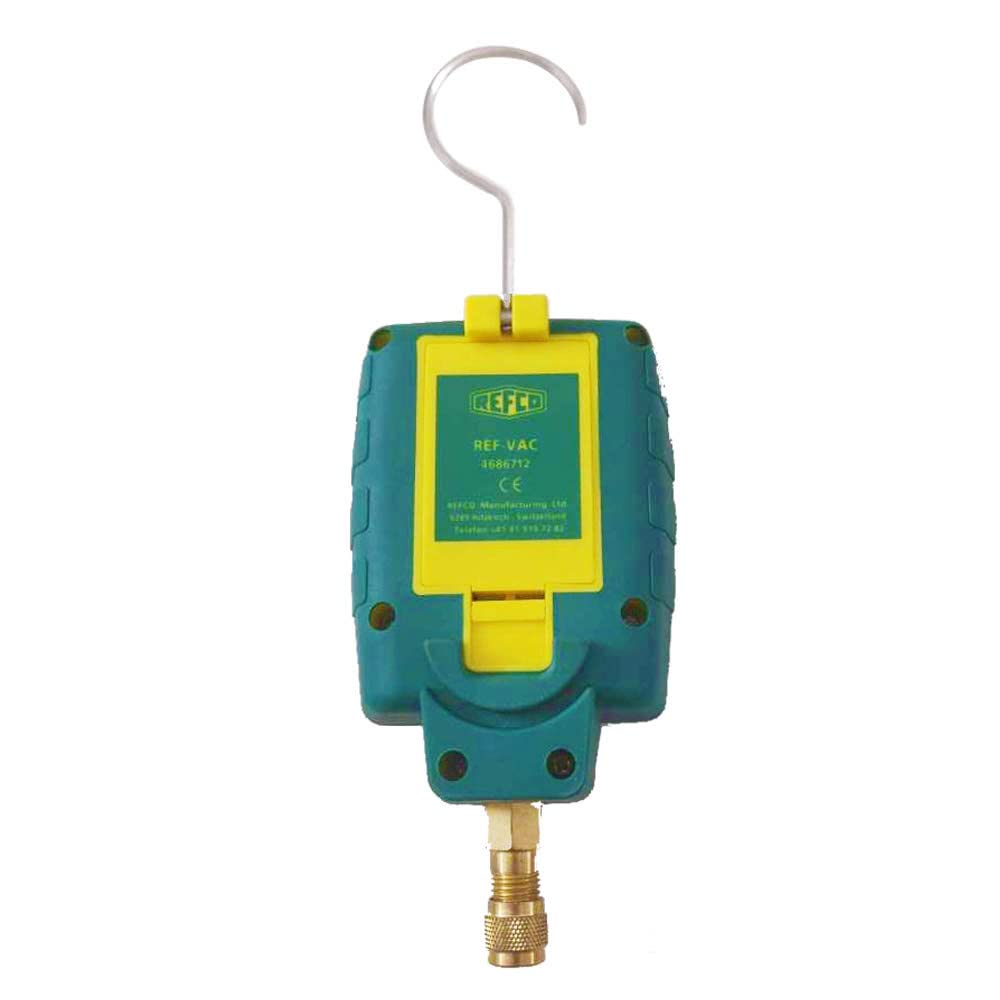

Refco Digital Vacuum Gauge has a large LCD display, the changing data can always be read easily. The vacuum gauge can be set to the main vacuum units such as microns, m bar, Pa, Torr, mTorr, psi, and in Hz. Vacuum Gauge has a large LCD display, the changing data can always be read effectively. The vacuum gauge can be set to the main vacuum units for example microns, mbar, Pa, Torr, mTorr, psi, and in HG. It can accurately show the vacuum from 18000–0 microns. The unit additionally has a practical hook for hanging and conforms to the protection class IP 54.Applications:HVAC, Biotech, Food, Freeze Drying, Vacuum Furnaces, Refrigerants, Beverage Industries, Pharmaceutical
- Vacuum Range: 0 to 18000 microns; Accuracy: ±10% (0 to 100 microns), ±6% (101 to 750 microns).
- Resolution: 0 to 20: 0.2 micron, 21 to 200:1 micron, 201–500:5 microns; Auto Shutoff: After 10 min. if vacuum value >18000 microns, After 30 min. if vacuum value <18000 microns.
- Operating Temperature: 0°C to 40°C / (+32°F to 104°F); Storage Temperature: -20°C to 60°C / (-4°F to 140°F); Sensor Type: Thermistor; Over Pressure: Max. 500 psi (34 bar).
- Engineering Units: microns, mbar, Pa,Torr, mTorr, psi, inHG; Battery Life: 40 hours.
- Connector Type: Standard male ¼ inch; Supply Scope: Instruction Manual, Refco Vacuum Gauge, Hanging hook included.
| Brand Name | Ace Instruments |
|---|---|
| Part Number | IK-Refco |
| Manufacturer | Ace Instruments |
| Included Components | Instruction Manual |
