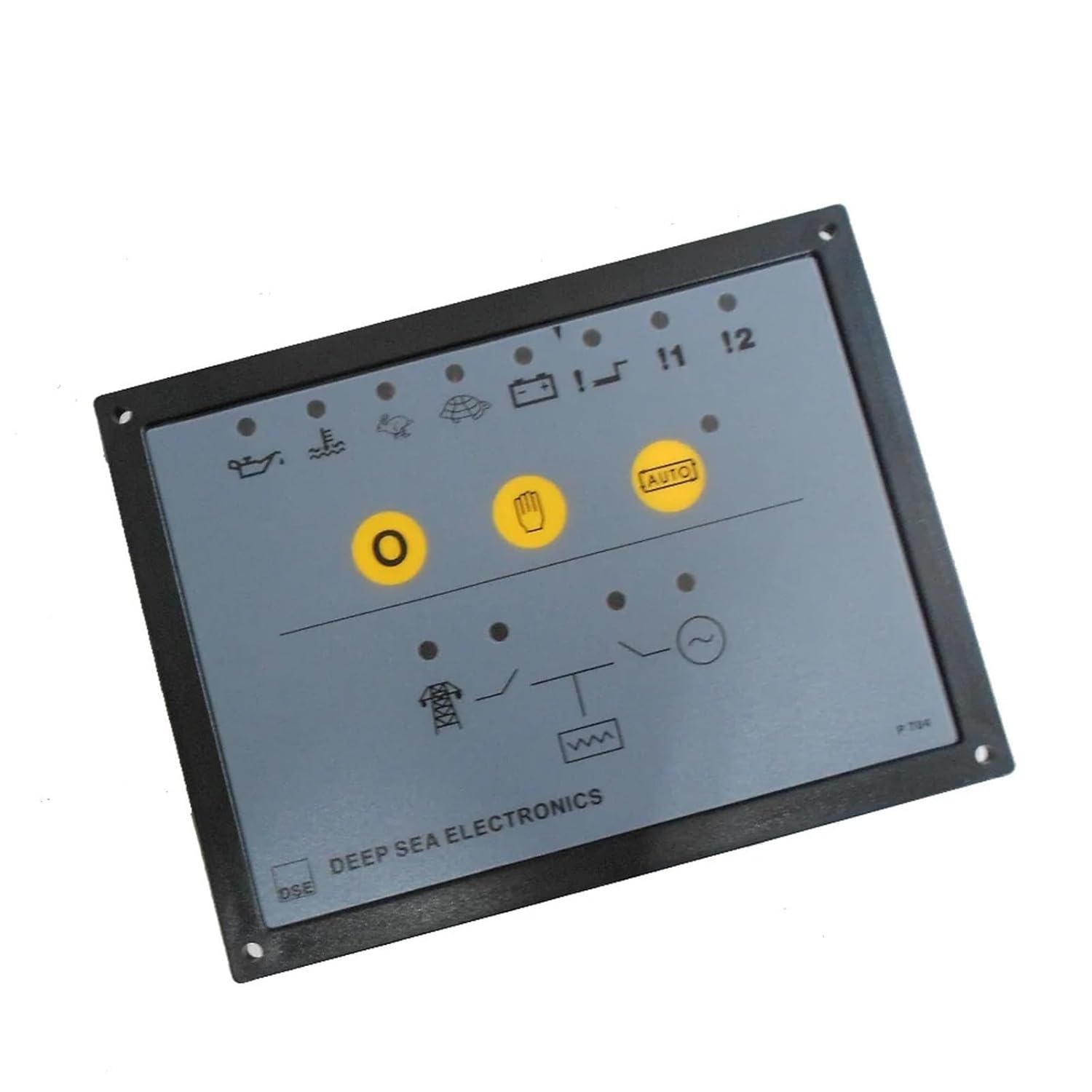

DSE704/DSE705 Diesel Generator Set Control Module Can Replace DSE704, The Control Panel For Protection(DSE704)

Electronic Engine ControlSupply:8 Volts to 35 Volts Continuous.Cranking Dropouts:Able to survive 0 Volts for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 Volts.This is achieved without the need for internal batteries.Max. Current:Operating 50mAStandby 10mAAlternator Input Range:75 Volts (ph-N) to 277 Volts (ph-N) AC (+20%)Mains Input Voltage:15 - 277 Volts (ph-N) AC (+20%)Alternator Input Frequency:50 - 60 Hz at rated engine speed(Minimum: 75V AC Ph-N)(Crank Disconnect from 15V Ph-N @ 20Hz)Overspeed +14% (+24% overshoot)Underspeed -20%Mains Frequency:50 - 60 HzStart Output:1.2 Amp at supply voltage.Fuel Output:1.2 Amp at supply voltage.Auxiliary Outputs:1.2 Amp at supply voltage.Dimensions:125mm x 165mm x 28 mmCharge Fail:12 Volts = 8 Volts CF 24 Volts = 16 Volts CFOperating Temperature Range:-30°C to + 700CApplicable Standards:Compliant with BS EN 60950 Low Voltage DirectiveCompliant with BS EN 50081-2: 1992 EMC DirectiveCompliant with BS EN 61000-6-4: 2000 EMC Directive==========Model Number : DSE704

• Electronic Engine Control
• DSE704/DSE705 Diesel Generator Set Control Module Can Replace DSE704, The Control Panel For Protection
