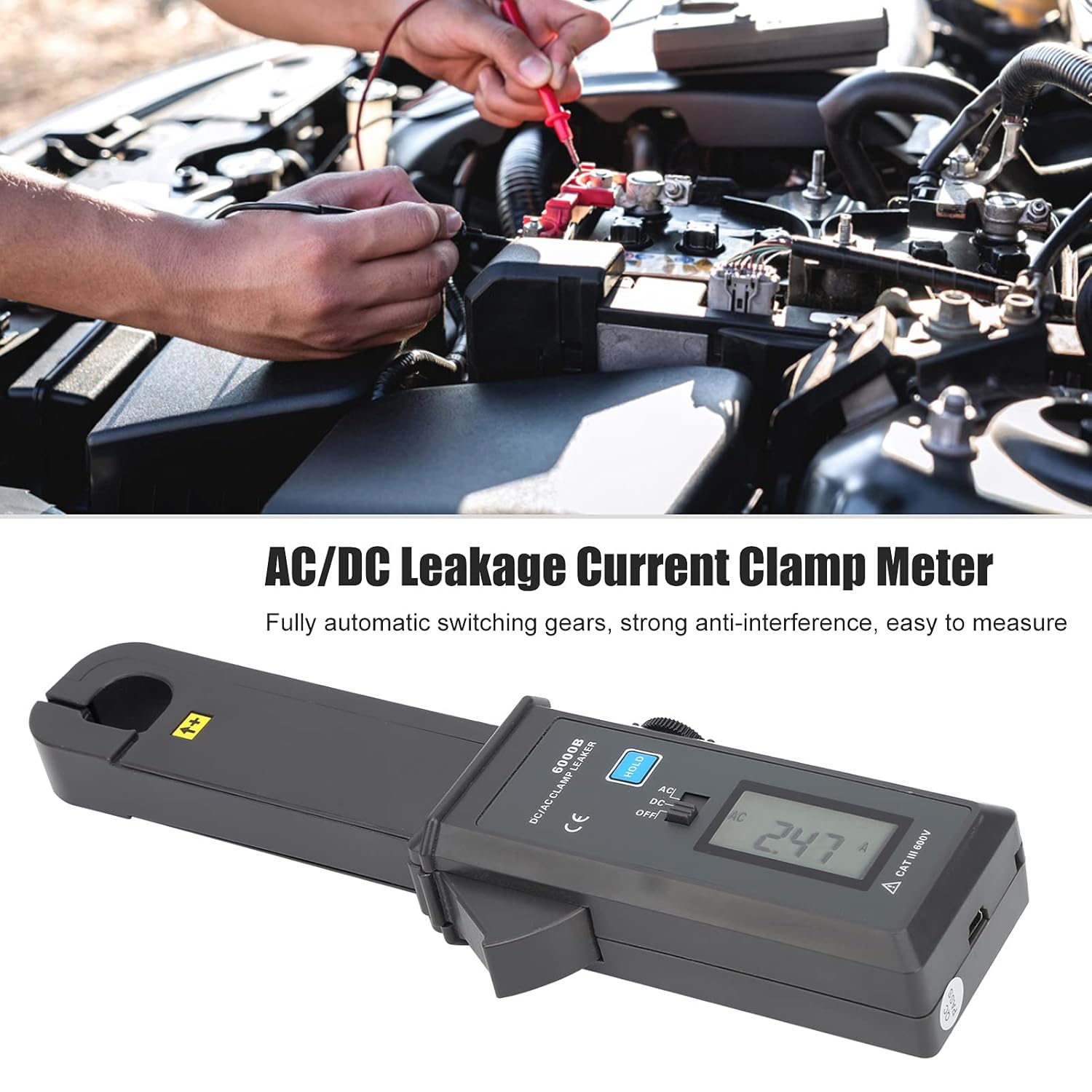

ETCR6000B Clamp Meter 0mA-60.0A AC DC Leakage Current, Clamp Leaker for Automobile DC Dark Current Measurement with ABS Material and USB Interface

Specification: Item Type: Leakage Current Tester Material: ABS Model: 6000B Measurement Function: Automobile DC dark current, leakage current, etc., other AC and DC current, leakage current measurement Power Supply: 1 x 6F22 9V Battery, 100 hours of continuous use (Battery Not Included) Test Method: Clamp-on CT, non- measurement Jaw Size: Approx. 16x18mm / 0.6x0.7in Range: 0mA-60.0A AC/DC Resolution: 1mA AC/DC Accuracy: ±2%Rdg±5dgt (23℃±5℃, Below 75%Rh) Display Mode: 4-Digit LCD Display Sampling Rate: 2 Times/Sec Frequency Response: AC 45Hz-400Hz Polarity Indication: Automatic recognition when DC current is detected, display - sign Wire Position: The wire to be detected is at the center of the jaws Shifting: Fully automatic switching Line Voltage: 600V and below line test USB Interface: With a USB interface, the stored data can be uploaded to the computer, saved and printed Communication Parameters: Baud rate 9600, data bit 8, stop bit 1, parity bit NONE Support Functions: Data retention, overflow display, automatic shutdown, battery voltage Working Current: 10mA Working Temperature and Humidity: -10℃-50℃; below 80%RH Limit Temperature Error: -10℃-0℃ and 40℃-50℃, the maximum error increases by 2%rdg Storage Temperature and Humidity: -10℃-60℃; below 70%RH Insulation Strength: AC 3700V/rms (between core and box) How to Use: Get the product, open the back cover with a tool, install the battery, and the user can adjust the measurement range, and then you can use the measurement. The right knob is zeroed, which has strong anti-interference and better calibration to zero. HOLD is the data holding key. It is very convenient to measure by simply putting the wire into the jaws. packing list: 1 x AC/DC Leakage Current Meter (Battery Not Included) 1 x CD 1 x

• [Anti-interference Support] Features knob zero adjustment, data retention, and automatic shutdown for a smooth testing experience.
• [Strong Adaptability] Slender jaw design, fully automatic switching gears, and strong adaptability make it suitable for various testing scenarios.
• [Automobile Dc Dark Current Measurement] for measuring automobile dc dark current, leakage current, and other ac/dc currents effectively.
• [Precise Winding Head Design] The range covers 0ma‑60.0a with a slender jaw design for line testing up to 600v, ensuring accuracy.
• [Ac and Dc Leakage Current Meter] Support clamp ct, and high measurement accuracy for automotive applications.
