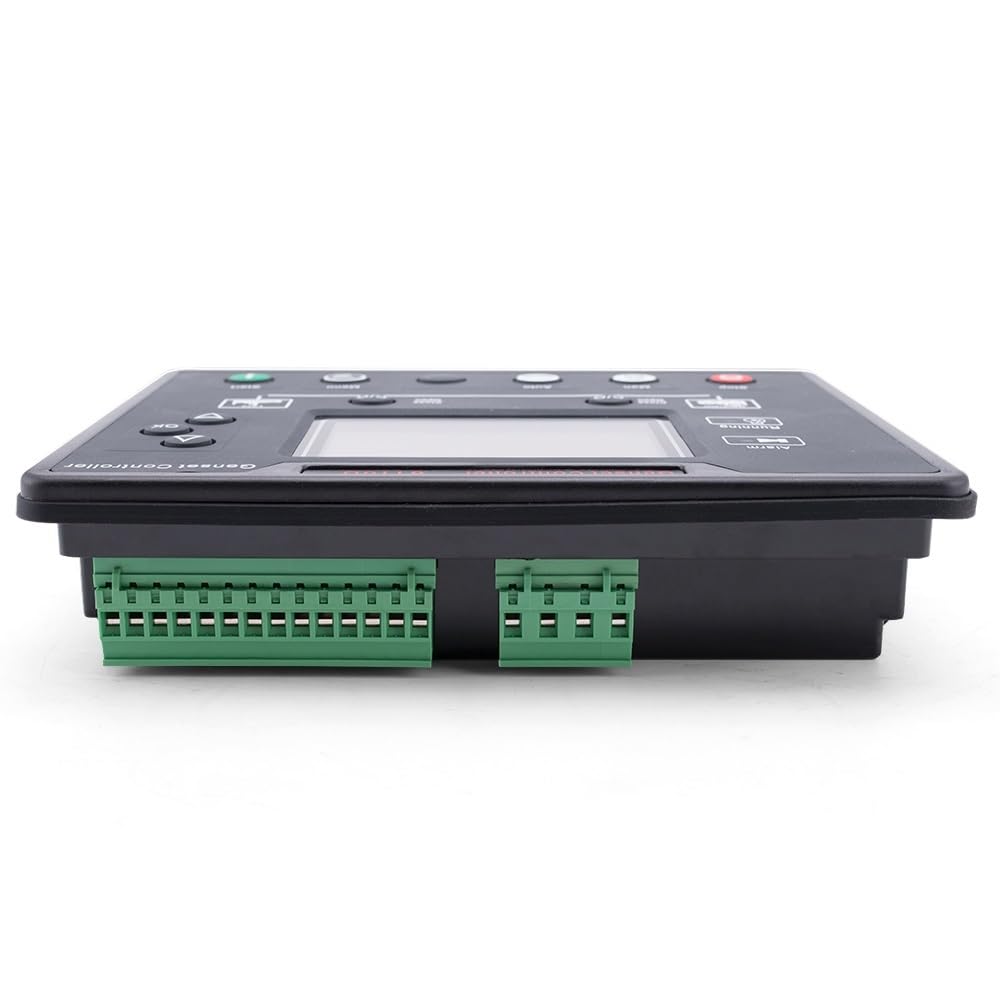

Genset Controller 6110U ATS LCD Control Auto Start Remote Electronic LCD Board Diesel Generator Parts Monitor Panel

Its main features are as follows:O liquid crystal display LCD as a 32x64, with backlight, four kinds of language (Simplified Chinese, English, Spanish and Russian) display with the touch of a button operation;The screen saver with hard screen acrylic material, wear resistance and scratch resistance;The use of silicone panels and buttons, high and low temperature and strong ability to adapt to the environment;The RS485 communication interface, using MODBUS protocol to achieve the "three remote" function;It is suitable for three-phase four wire, three-phase three line, second-line single-phase, two-phase three wire (120V/240V) power supply system 50Hz/60Hz;The acquisition and display of electricity / power three-phase voltage, three-phase current, frequency and power parameters;Electric power generationLine voltage Uab, Ubc, Uca line voltage Uab, Ubc, UcaPhase voltage Ua, Ub, Uc phase voltage Ua, Ub, UcFrequency Hz frequency HzloadCurrent IA, IB, ICActive power kWReactive power kVarApparent power kVAPower factor PFCumulative power generation kWhThe mains overvoltage and undervoltage, phase function, power generation with overvoltage, undervoltage, frequency, frequency, flow function under;The precision acquisition engine parameters:Temperature WT degrees C/ degrees F at the same time displayOil pressure kPa/Psi/Bar OP at the same time showFuel level FL unit:%Speed SPD unit: RPMBattery voltage VB unit: VCharger voltage VD unit: VTimer HC can be accumulated 999999 hoursCumulative total of 999999 times the maximum number of timesO control protection function: diesel generator automatic start / stop, close brake switch (ATS) and perfect fault protection function;O have power shutdown, idle speed control, speed control, preheating control function, and is the relay output;O parameter setting function: allows the user to change the setting of the parameters. At the same time, memory in the internal flash memory, isn't lost in the system is out of power, all the parameters of the controller can from the front controller panel adjustment, or use the PC through programming interface to adjust (using SG72 adapter)The variety of temperature, pressure, level sensor can be used directly, and can customize the parameters;Multiple successful starting conditions (speed sensor, oil pressure, power) can be selected;The power supply of a wide range of VDC (8~35), can adapt to different starting battery voltage;O all parameters are used to digitally adjust the, abandoned the conventional potentiometer simulation adjustment method, improves the reliability and stability of the whole machine;A rubber sealing rings between the shell and the design the control panel, waterproof performance can reach IP55;The controller uses a fixed metal card;O modular structure design, flame retardant ABS shell, pluggable terminal blocks, embedded installation, compact structure and convenient installation.

• The screen saver with hard screen acrylic material, wear resistance and scratch resistance;
• The use of silicone panels and buttons, high and low temperature and strong ability to adapt to the environment;
• The RS485 communication interface, using MODBUS protocol to achieve the "three remote" function;
• It is suitable for three-phase four wire, three-phase three line, second-line single-phase, two-phase three wire (120V/240V) power supply system 50Hz/60Hz;
• The acquisition and display of electricity / power three-phase voltage, three-phase current, frequency and power parameters;
