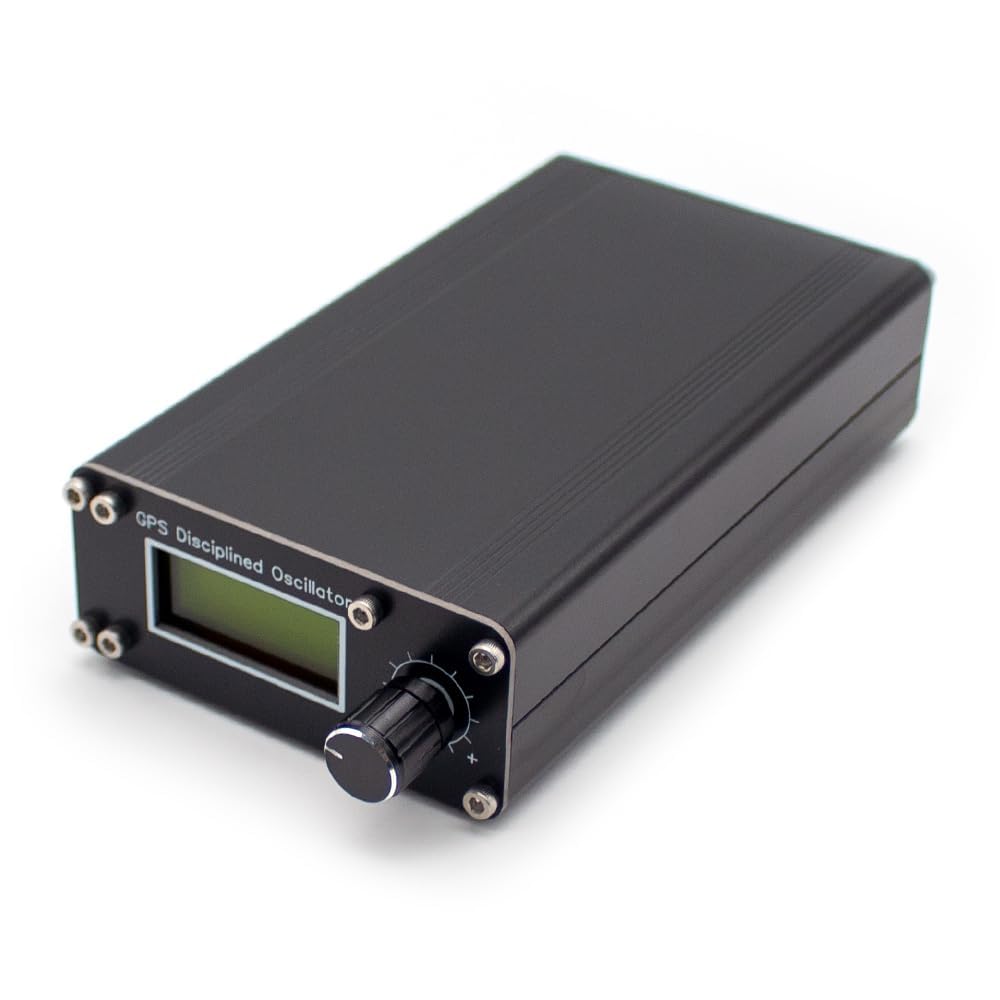

GPSDO Frequency Reference Source, Rubidium Atomic Clock with OCXO, GPS Disciplined Oscillator Signal Generator 10MHz

GPSDO Frequency Reference Source, Rubidium Atomic Clock with OCXO, GPS Disciplined Oscillator Signal Generator 10MHz Applications: Laboratory Calibration Systems High-End Audio Decoders & Test Equipment Frequency Counters & Signal Analyzers Communication Base Stations Astronomical Observation Devices Advanced Technology: This GPS Disciplined Oscillator utilizes 16-bit PWM precision control (resolution: 0.000076V/step) to continuously adjust the OCXO's output frequency based on real-time GPS/BeiDou satellite timing references The triple-shielded OX256B oven-controlled crystal oscillator ensures <1μs daily time drift Features: GPS-Disciplined OCXO Technology Ultra-High Stability: ±0.001Hz at 10MHz Dual-Mode GPS/BeiDou Synchronization Low Temperature Drift: 1e-10/day 10dBm Square Wave Output Compact Design: 150x88x38mm Specifications: Power Supply:DC 12V±2V Current Consumption: 650mA (warming up)/350mA (stable) Output Frequency: 10.000000 MHz±0.001Hz Output Waveform: Square Wave (50Ω load) Output Amplitude: 10dBm (±1dB) OCXO Module: ISOTEMP 143-141/OX256B GNSS Receiver: ATGM336H GPS/BeiDou Dual-Mode Synchronization: 1PPS Pulse-Per-Second Input Interfaces: 10MHz BNC/1PPS SMA/GPS Antenna Package includes: 1 x GPS Disciplined Oscillator Signal Generator

• GPS-Disciplined OCXO Technology
• Ultra-High Stability: ±0.001Hz at 10MHz
• Dual-Mode GPS/BeiDou Synchronization
• Low Temperature Drift: 1e-10/day
• 10dBm Square Wave Output
• Compact Design: 150x88x38mm
