LA1010 USB Logic Analyzer, 16 Channels 100MHz Digital Logic Analyzer with Adjustable Threshold PWM Output, for Windows XP/7/8/10

Item Type: Logic AnalyzerLanguage: Chinese and English can be switchedInput Channel: 16Maximum Sampling Rate: 100mMeasuring Bandwidth: 20 MetersMinimum Pulse Width Captured: 20 nsMaximum Sampling Depth: 10g / channelInput Voltage Range: -50~+50VInput Impedance: 220 KΩ, 12 pFAdjustable Threshold Voltage: -4~+4V, step: 0.01VPulse Width Modulation Channel: 2Pulse Width Modulation Frequency Range: 0.1~10mhzPulse Width Modulation Frequency Adjustment Step: 10 nsPulse Width Stepping: 10nsPulse Width Modulation Output Voltage: +3.3VPulse Width Modulation Output Impedance: 50ΩStandby Current: 100mAhMaximum Operating Current: 150mASize: Approx. 95 x 55 x 23mm / 3.7 x 2.2 x 0.9inSupported Operating Systems: for Windows XP, for Windows 7/8/10 (32/64 bit)Supported Standard Protocols: uart/rs-232/485, i2c, can, dmx512, i2s/pcm, jtagPackage List：1 x Logic Analyzer2 x 9P Cable 1 x 2P Cable 20 x Test Hook 1 x USB Cable1 x Instruction Manual

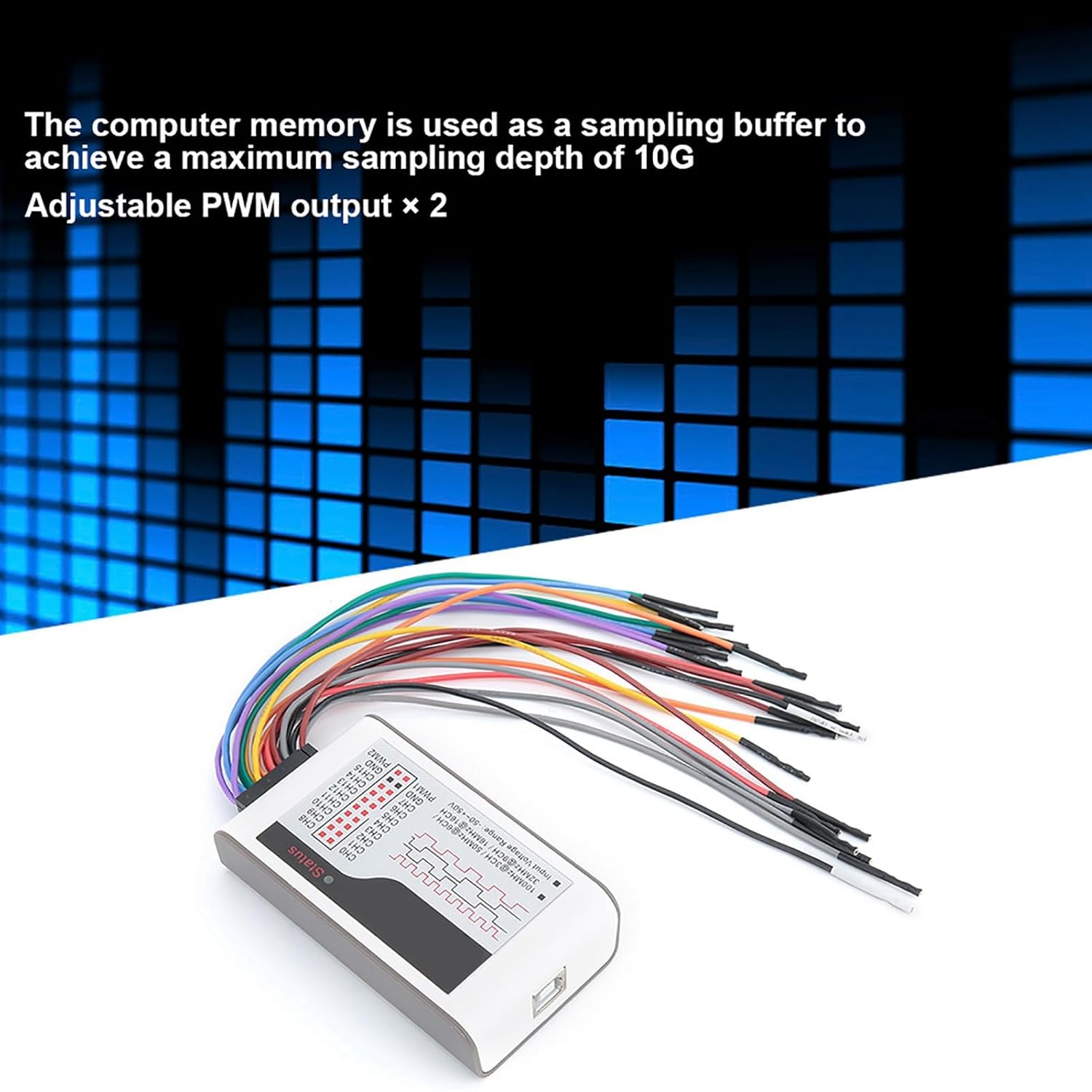

• BRIEF INTRODUCTION: 100M high sampling rate, 16 channels, 10G depth, multi-logic level threshold voltage adjustable. Supports multiple protocol parsers and integrates 2-channel PWM generators. Ideal tools for system development and debugging such as MCU, ARM, FPGA, etc.
• SUPPORTED STANDARD PROTOCOLS: UART/RS232/485, I2C, SPI, CAN, SDID, DMX512, I21/PCM, JTAG, LIN, , Modbus, 1-Wire, SMBus, UNI/O. USB1.1, Infrared, parallel, PS/2, etc
• FEATURES: Data display in decimal/hexadecimal/2/ASCII format is convenient for observation and analysis. Both sampling data and analytical data can be exported, which is convenient for archiving or other analysis software.
• POWERFUL SOFTWARE: The supporting software and resources can support Chinese and English, and the Chinese and English software languages can be adjusted. It supports for Windows XP/7/8/10, for Linux, for MAC OS and other operating systems. It is more powerful and better than oscilloscope in digital signal analysis.
• BASIC PARAMETERS:Input channels number: 16; Sampling rate: 100M@3CH, 50M@6CH, 32M@9CH, 16M@16CH; USB 2.0 interface, Max sampling depth: 10G; Max input voltage: -50 ~+50V; Adjustable threshold voltage: -4~+4V; PWM frequency range: 0.1MHz-10MHz.
