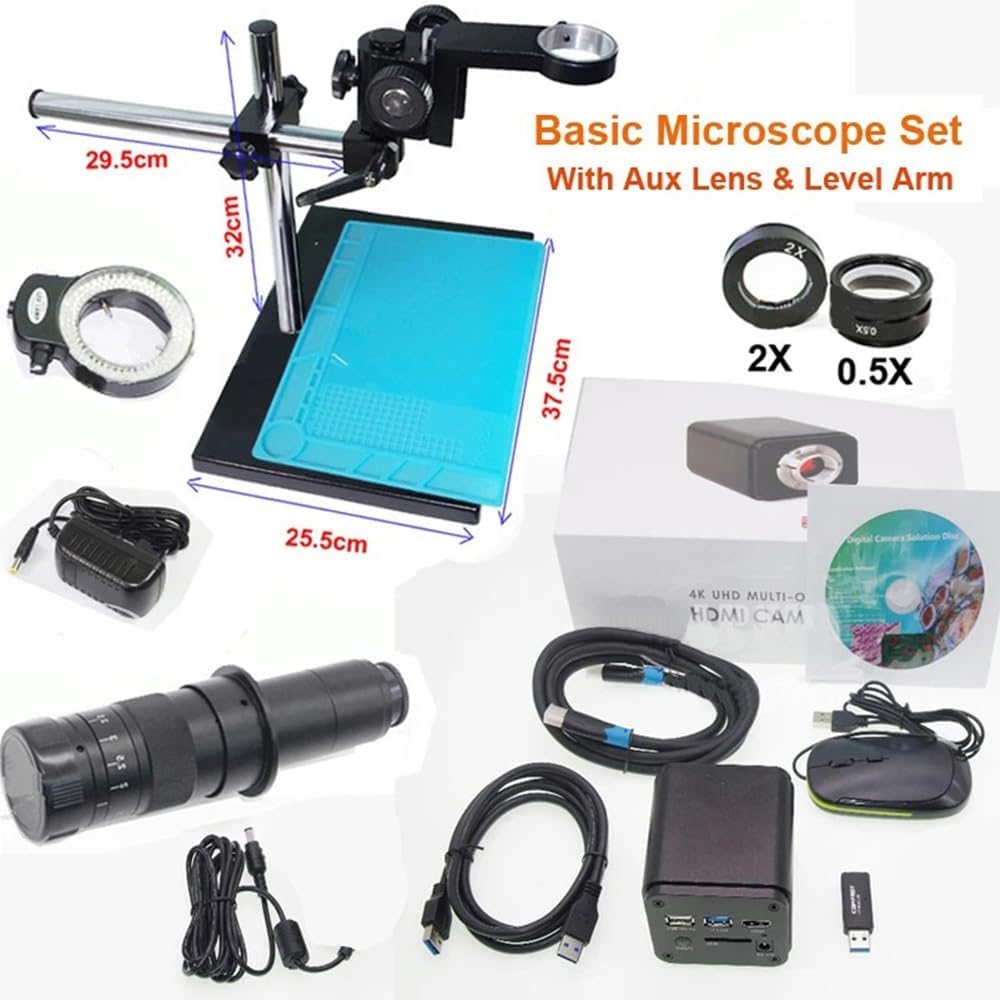

Microscope Accessories Kit IMX334 4K 60FPS Autofocus Auto Focus Focal HDMI USB Video Industry Microscope C-Mount Camera Set Stand Lens Microscope Slides(Has Barlow Boom arm)
Product details
| Management number | 220704644 | Release Date | 2026/05/03 | List Price | $695.24 | Model Number | 220704644 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Imx334 Sensor, senzor size:1/1.8"Pixel(m) : 2.0x2.0Resolution: 4K Ultra HD (8mp 3840x2160)Preview frame rate: 60fps @ 4K under HDMI , 30fps@3840x2160 (USB)Max recording frame rate: 50fps-60fps under HDMIExposure : 0.1ms~1000msReal time measurementSupport U disk and SD card storageHDMI, USBoutputatthesametimeVideo Output:HDMI Interface1. Comply with HDMI2.0 standard;2. Max frame rate 60fps@4K or 60fps@1080P;3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive2. H264 encoded video;3. Bandwidth adjustment in real time;4. unicast/multicast configuration;5. DHCP configuration or manual configurationC-MOUNT Lens:Working distance: 95mmzoom c-mount Lens0.5X C-mount adapterzoom ratios: 6.5:1Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)Size: 180mm(L) * 50mm(DIA)Weight: 450g144 Microscope LED Ring Light:144bright white LED bulbs100,000 hours of lifeIntense and focused shadow-free illuminationThe brightness of 0-100%Adjustable,high brightnessVariable intensity controlPower input: 100-240V, 50-60HZSuit for the dia of the lens: 30mm-63mmUniversal Stand Feature:This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.Set 1 Package including:1 x 4K Camera1 x HDMI Cable1 x Power1 x 10X-180X C mount Lens1 x Universal Stand1 x 144 Micros
- Imx334 Sensor, senzor size:1/1.8"; Pixel(m) : 2.0x2.0; Resolution: 4K Ultra HD (8mp 3840x2160).
- Preview frame rate: 60fps @ 4K under HDMI , 30fps@3840x2160 (USB); Max recording frame rate: 50fps-60fps under HDMI; Exposure : 0.1ms~1000ms; Real time measurement; Support U disk and SD card storage; HDMI, USBoutputatthesametime.
- C-MOUNT Lens: Working distance: 95mm; zoom c-mount Lens; 0.5X C-mount adapter; zoom ratios: 6.5:1; Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display); Size: 180mm(L) * 50mm(DIA).
- 144 Microscope LED Ring Light: 100,000 hours of life; Intense and focused shadow-free illumination; The brightness of 0-100%Adjustable,high brightness; Variable intensity control; Suit for the dia of the lens: 30mm-63mm.
- Professional and practical design with beautiful appearance, easy to carry and use.
- Usually used in laboratories, schools, teachers, sample observation, eyepiece protection, etc.
| Brand | ZTBH |
|---|---|
| Color | Has barlow boom arm |
| Model Name | ZTBH |
| Unit Count | 1.0 Count |
| Item Weight | 4000 Grams |
| Manufacturer | ZTBH |
| Model Number | ZTBH |
| Manufacturer Part Number | ZTBH |
