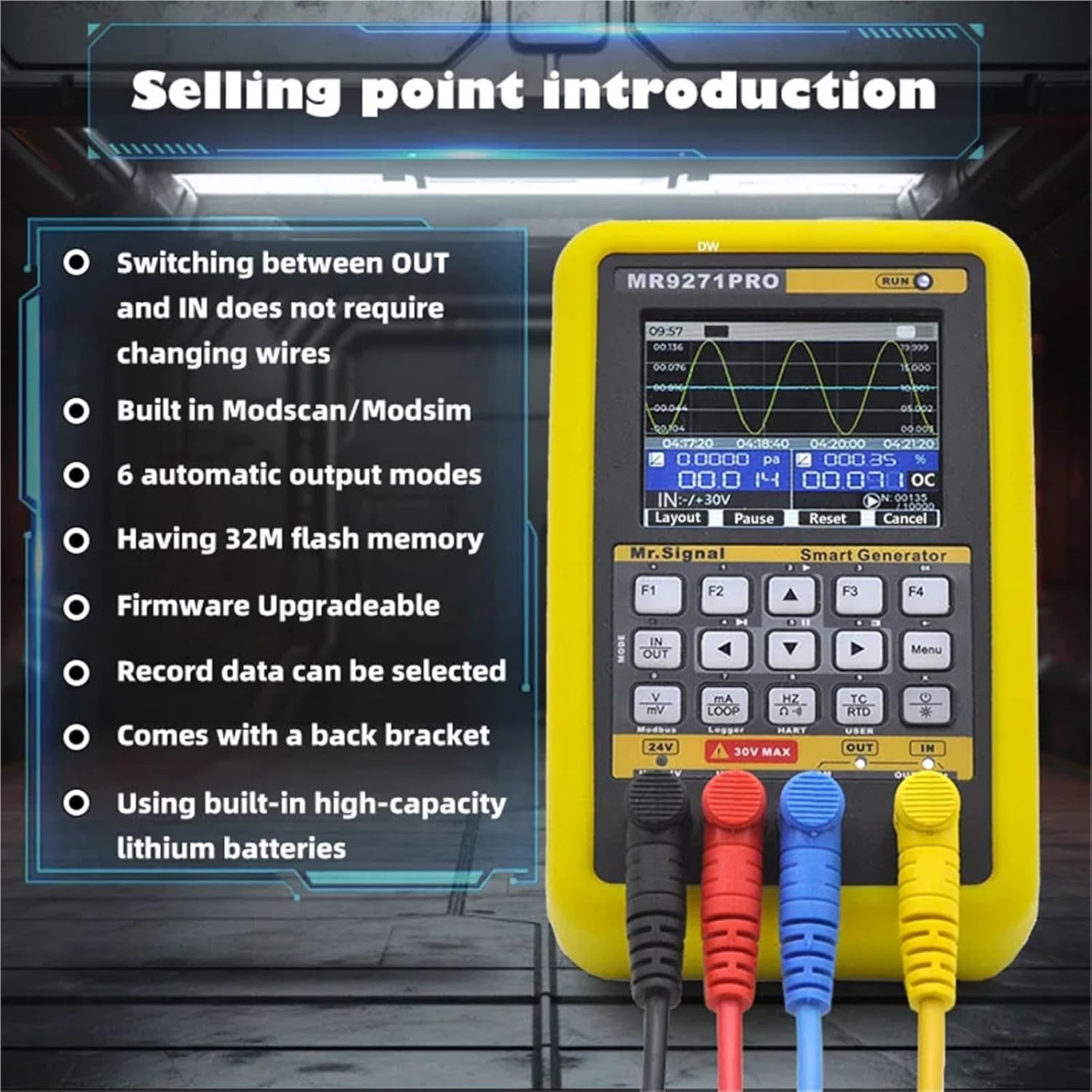

Signal Generator with Integrated Paperless Recorder, Multi-Signal Compatibility, and Process Calibration Support,(US)

Digital Signal ProcessorsProduct Description:1,Equipped with a high-speed ARM CPU, it boasts robust performance, stable operation, and a user-friendly interface.2,Featuring a nylon shell, backlit silicone buttons, and a high-transmittance tempered glass mirror.3Capable of simultaneously measuring and outputting multiple signals (current, voltage, millivolt, frequency, resistance, thermocouple, thermal resistance, PT1000, PT500, PT100).4Possessing functions such as HART protocol, MODBUS protocol, paperless recorder, signal conversion, real-time curve, and programmable output.Functional Characteristics:HART Communication Protocol: Supports the HART communication protocol, adding exclusive HART functions and graduation numbers.Simultaneous Measurement and Output of Signals: Enables the simultaneous measurement and output of multiple signals.Programmable Current and Voltage Output: Supports programmable output of current and voltage signals in two modes. Mode 1: Sets the start point, end point, and cycle count to commence work; Mode 2: Advanced mode, where signal changes are fully controlled by parameter settings.Preset Values: Presets 9 groups of commonly used signal values for quick output.Signal Conversion: Converts input signals into output signals, for instance, converting an input frequency signal into a current signal and transforming the input range from 0-1000Hz to 4-20mA.Real-time Curve: Displays the changing trends of input and output signals through curves, allowing users to set the curve collection time and automatically display the maximum and minimum values within a specific time range.Engineering Display Conversion: Signals can be displayed as signal values or engineering quantities, with a linear correspondence between signal values and engineering quantities. For instance, a 4-20mA signal corresponds to 0-100, where 4mA represents 0, 12mA represents 50, and 20mA represents 100. This range can be modified through parameters.Modbus RTU Remote Control: Communicates with configuration software or PLCs via RS485 to set instrument output signals and monitor instrument input signals online.Instrument Toolset: Extends the instrument's capabilities, such as offering a simple paperless recorder and PID controller. For details, please visit the product website as this manual does not provide a comprehensive description.USB Firmware Upgrade: Upgrades firmware to expand functions.USB to RS485: The instrument can function as a USB to RS485 virtual serial port. Operating systems below WIN10 require the installation of drivers.Parameters:Battery: Built-in 3.7V 3000mAh polymer lithium battery; standby time is approximately 20 hours; usage time varies according to usage conditions (20mA continuous output can last 8-10 hours).Operating Environment: 0°C-50°C.Internal Reverse Connection and Overcurrent Protection;Protection Voltage: 30V.Dimensions: 127mm * 80mm * 38mm.Weight: 300 grams.Packing List:1 Certificate of Conformity1 Tool Kit1 RS485 Adapter1 USB Cable1 Charger (random black or white color)1 10A/4mm Test Lead (Yellow)1 10A/4mm Test Lead (Blue)1 10A/4mm Test Lead (Red)1 10A/4mm Test Lead (Black)1 Alligator Clip (Yellow)1 Alligator Clip (Blue)1 Alligator Clip (Red)1 Alligator Clip (Black)1 MR9271PRO Signal Generator==========Battery Included : YesHigh-concerned chemical : NoneModel Number : MR9271PRODisplay Size : 2.9 Inches & UnderDIY Supplies : ElectricalCertification :
