SW900 Electric Bike Display Panel LCD Screen Bike Speedometer Controller 24V 36V 48V 60V Bicycle Computer With Backlight Adjustment System(5pin)

Description:1. Brand new and high quality2. Made of high quality material, and practical to use3. Can be automatically identified and compatible 36V and 48V Voltage.4. It will show the true reflection of the battery charge, real time recording of the power consumption to for ensure riding mileage.5. The individual joints are clearly set up to help with cost-effective installation.6. When connected to a bicycle, this product will display a lot of useful data on your bike, such as riding speed, time, power and temperature.7. The color display on the meter makes it easier for you to see the data on the panel.8. Agreement 2Instrument setting functionLong press the up button and down button of the meter to enter the meter settings.P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.P02: mileage unit, 0: KM; 1: MILE.P03: Voltage level: 24V, 36V, 48VP04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit is minute.PO5: PAS level: 0, 3-level mode: 1-level 2V, 2-level 3V, 3-level 4V1, 5-level mode: 1-level 2V, 2-level 2.5V, 3-level 3V, 4-level 3.5V, 5-level 4VP06: wheel diameter: unit, inch; accuracy: 0.1.P07: Number of speed measuring magnets: range: 1-100.P08: Speed limit. Range: 0-50km/h, 50 means unlimited. No communication state (controlled by the meter): When the actual speed exceeds the speed we set, the meter will turn off the for PWM output; when it is lower than the speed we set, the meter will automatically turn on the for PWM output, and the driving speed is ±1km/h ; (Speed limit applies to PAS, not accelerator) Communication status (controlled by controller): The driving speed is consistent with the speed we set. Random error: ±1km/h. (Speed limits apply to PAS and Throttle) Note: These figures are based on KM. When changing KM to Mile, the speed value on the screen will automatically convert to the correct Miles, but if you don't change the speed limit setting from KM to Mile, it will be different from the actual speed limit in Mile.P09: for Zero start, non for Zero start setting, 0: for Zero start; 1: non for Zero start.P10: Driving mode setting 0: Power-assisted driving (turning handle is invalid). 1: Electric drive (driven by turning the handle, at this time the power-assisted gear is invalid). 2: Power-assisted drive and electric drive coexist at the same time.P11: Assist sensitivity setting Range: 1-24.P12: Power boost start strength setting Range: 0-5.P13: The type of power-assisted magnets is set to 5, 8, and 12 magnets, among which 5 and 8 are single Hall power sensors, and 12 is used for dual Hall power sensors.P14: Current limit of the controller. The current is 12A. Range: 1-20AP15: There is no such function.P16: ODO reset setting Long press the up button for 5 seconds ODO resetP17: 0: cruise not allowed, 1: cruise allowed; auto cruise optional (only valid for protocol 2)P18: Display speed scale range: 50%~150%,P19:0 enable 0:0,1:0P20: 0: 2 protocol 1: 5 S protocol 2: backup 3: backupSpecification:Material: ABSColor: Black (As Pictures Show)Weight: About 225gModel: 5pinVoltage: 24-60VPackage Includes:1 x Bike LCD Display1 x Adapter cable

• COLORFUL LCD DISPLAY PANEL: Enhance your e-bike experience with this SW900 colorful LCD display panel featuring real-time data monitoring of speed, time, power, and temperature - making it easier to track your riding performance with vibrant visual clear.
• WIDE VOLTAGE COMPATIBILITY: Compatible with 24V, 36V, 48V, and up to 60V electric bicycle systems, this versatile control panel automatically identifies and adapts to your e-bike's voltage for hassle-free installation and reliable performance.
• CUSTOMIZABLE RIDING SETTINGS: Access 18+ programmable functions including backlight brightness, speed limit (0-50km/h), driving modes, and power assist sensitivity - allowing you to personalize your riding experience for maximum comfort and efficiency.
• INTELLIGENT POWER MANAGEMENT: Monitors battery charge with accuracy, recording real-time power consumption to help you plan your journeys with confidence while the sleep timer function (adjustable 1-60 minutes) conserves energy when not in use.

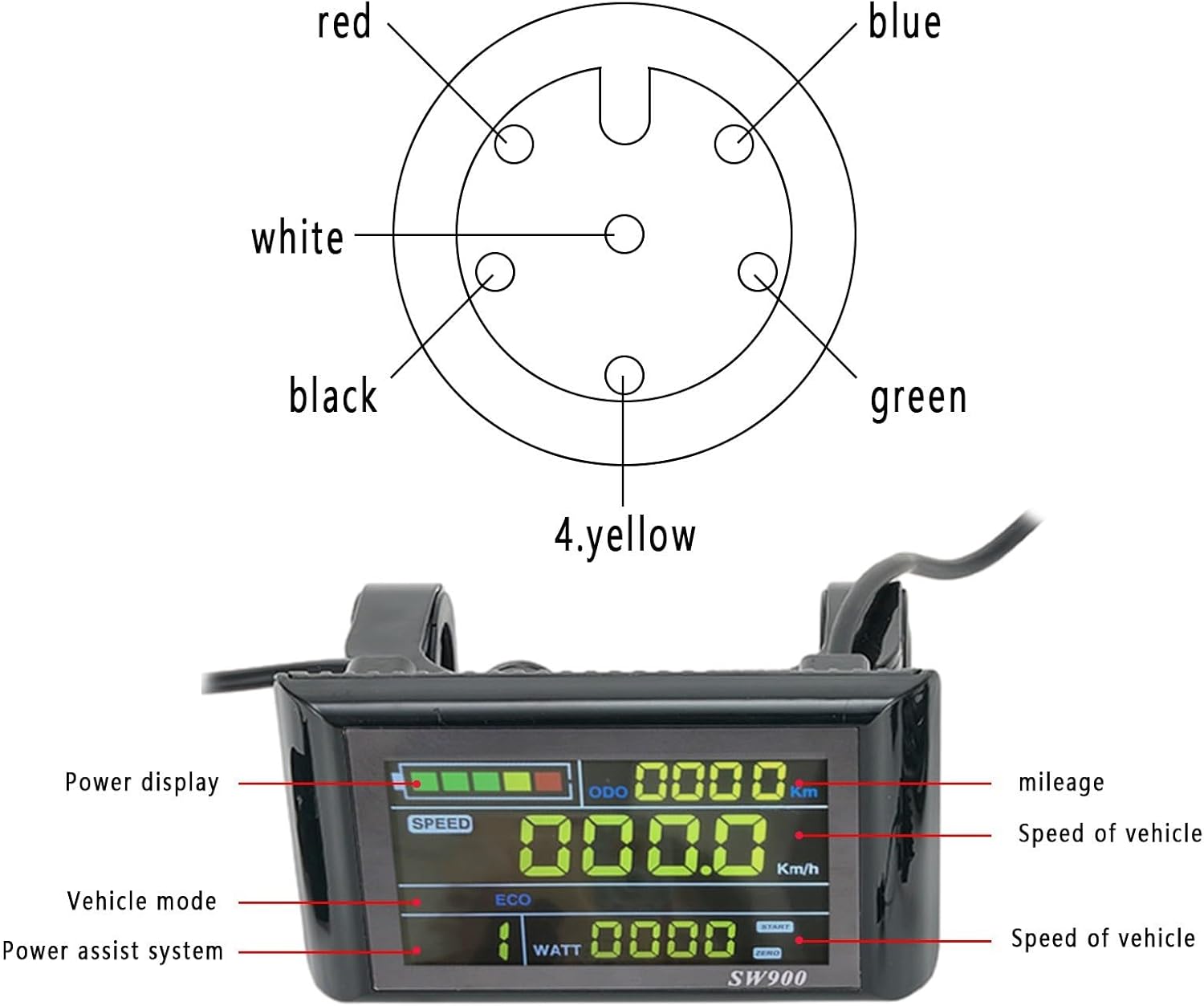

• EASY INSTALLATION WITH COMPLETE KIT: Comes with adapter cable and clearly designed individual connections for straightforward setup - the 5pin interface works with most e-bikes and electric scooters for quick plug-and-play functionality.
