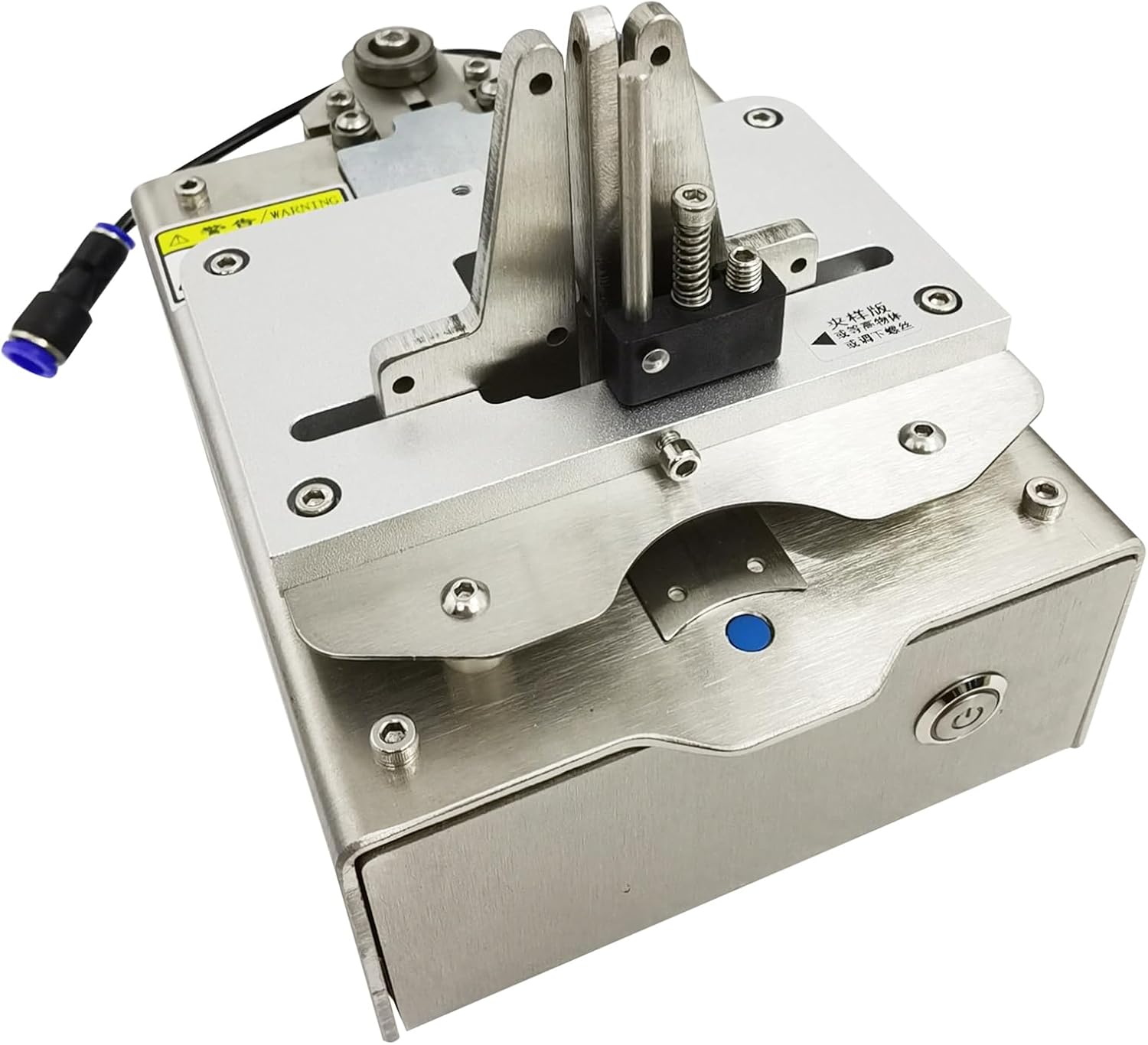

TECHTONGDA Pneumatic Electric Magnet Separator Circular Square Magnet Separator Stepless Speed Control 110V

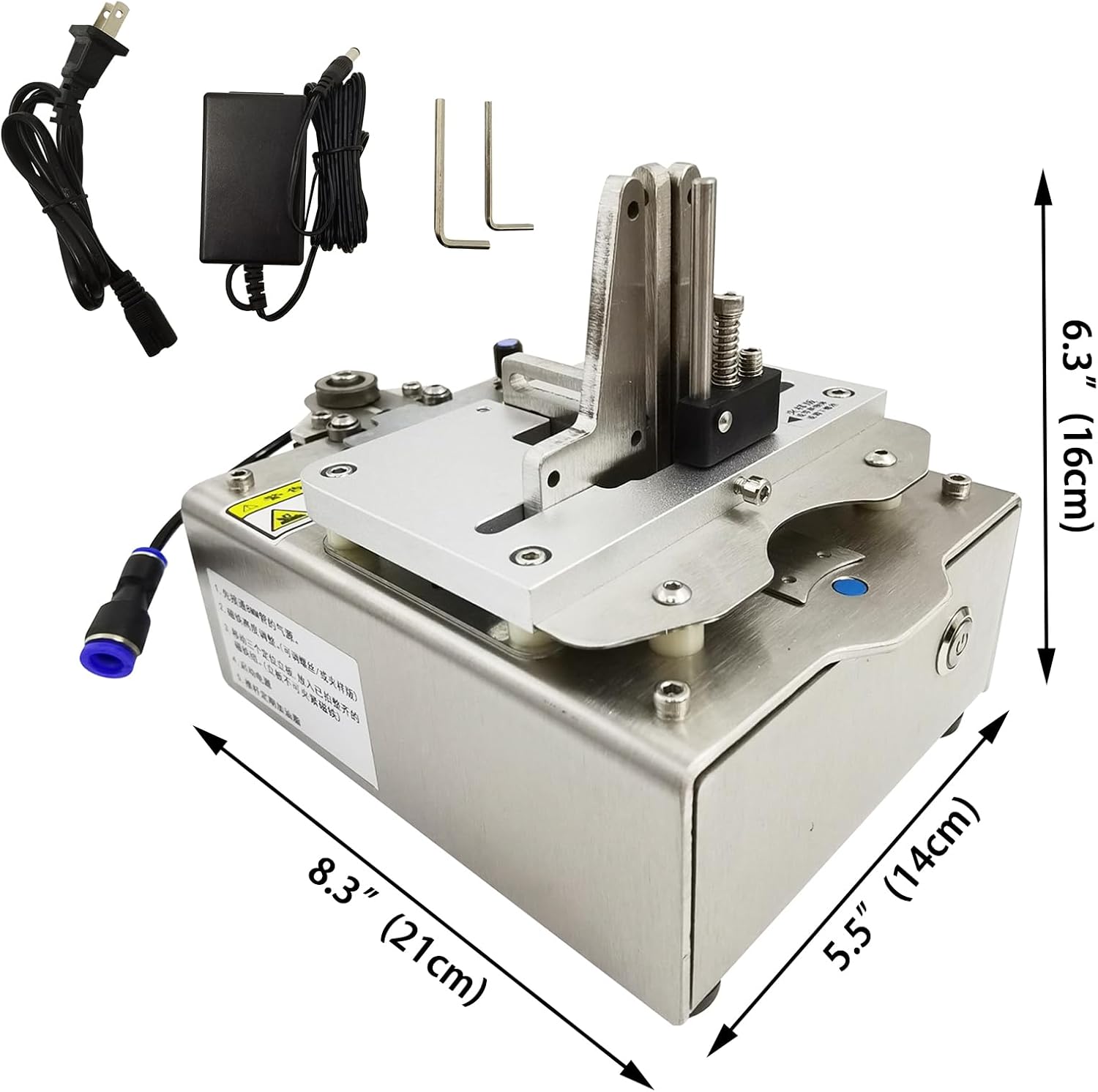

Overview: The magnet separator is suitable for shaped magnet, double-sided magnet, single-sided magnet, square magnet, long magnet, round magnet and other magnets, and has a wide range of application. Intelligent induction, continuous push, express and efficient; Adjustable speed, fast and slow self control; One-click start, easy and labor-saving! Parameters: Model:H6 Power mode:Pneumatic Pressure:0.4-0.8mpa Input voltage:AC100-240V Output voltage:DC24V Magnet size adjustment:No adjustment required Stepless speed control:Yes Transistor (Long life) :Yes Push rod with bearing backer:Yes Rectangular magnet specifications:Max 1.26"*1.65"(32*42mm); Min 0.08"*0.39"(2*10mm) Square/round magnet specifications:Max 1.26"*1.26"(32*32mm); Min 0.24"*0.24"(6*6mm) Magnet thickness/height:less than 0.4" (10mm) Start-stop mode:Hard/rigid Power hardware:solenoid valve Package size:11.5"*7.5"*9" (29cm*19cm*23cm) Net/gross weight:6.5LB(2.95kg) / 7.2LB(3.29kg) If your magnet size does not match, you can contact us to buy accessories. Item Included: Electric magnet separator *1 Power cord *1 Hex wrench *2

• 【Easy Operation】: Just adjust the distance of the three pillars according to the size of the magnet, put the magnet that needs to be separated, and then put a magnet as a sample under the clip template, so that the machine can measure the push height, and the magnet can be separated after starting the switch, the operation procedure is very simple, saving you a lot of time
• 【Intelligent Induction System】: After starting the machine switch, the machine pushes the magnet to the precise position, takes away the separated magnet, and pushes the next magnet immediately after the machine senses it, which can continuously and efficiently push the magnet, greatly improving the efficiency

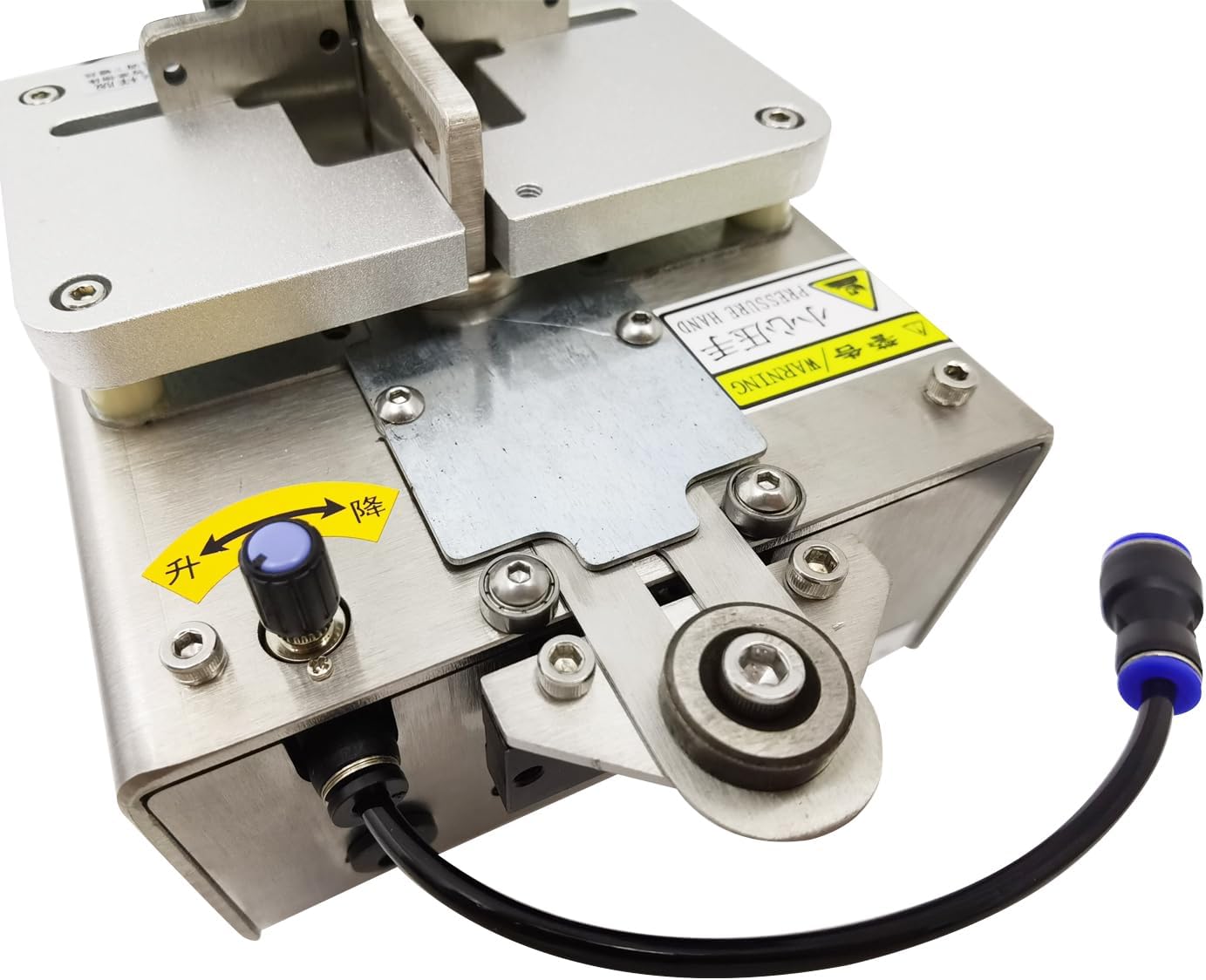

• 【Speed Adjustable】: Change the speed by rotating the speed adjustment knob, rotate left to increase the speed, rotate right to reduce the speed, infinite speed regulation, speed according to your needs flexible control
• 【For a Variety of Magnets】: In the size range, it is suitable for shaped magnets, double-sided magnets, single-sided magnets, square magnets, long magnets, circular magnets and other magnets, and has a wide range of applications
• 【Material Durable】: The wire case and spare parts of the machine are made of 304 stainless steel material, with high strength and wear resistance, not easy to deformation, and 6061 aluminum plate, strong and durable structure, long service life
