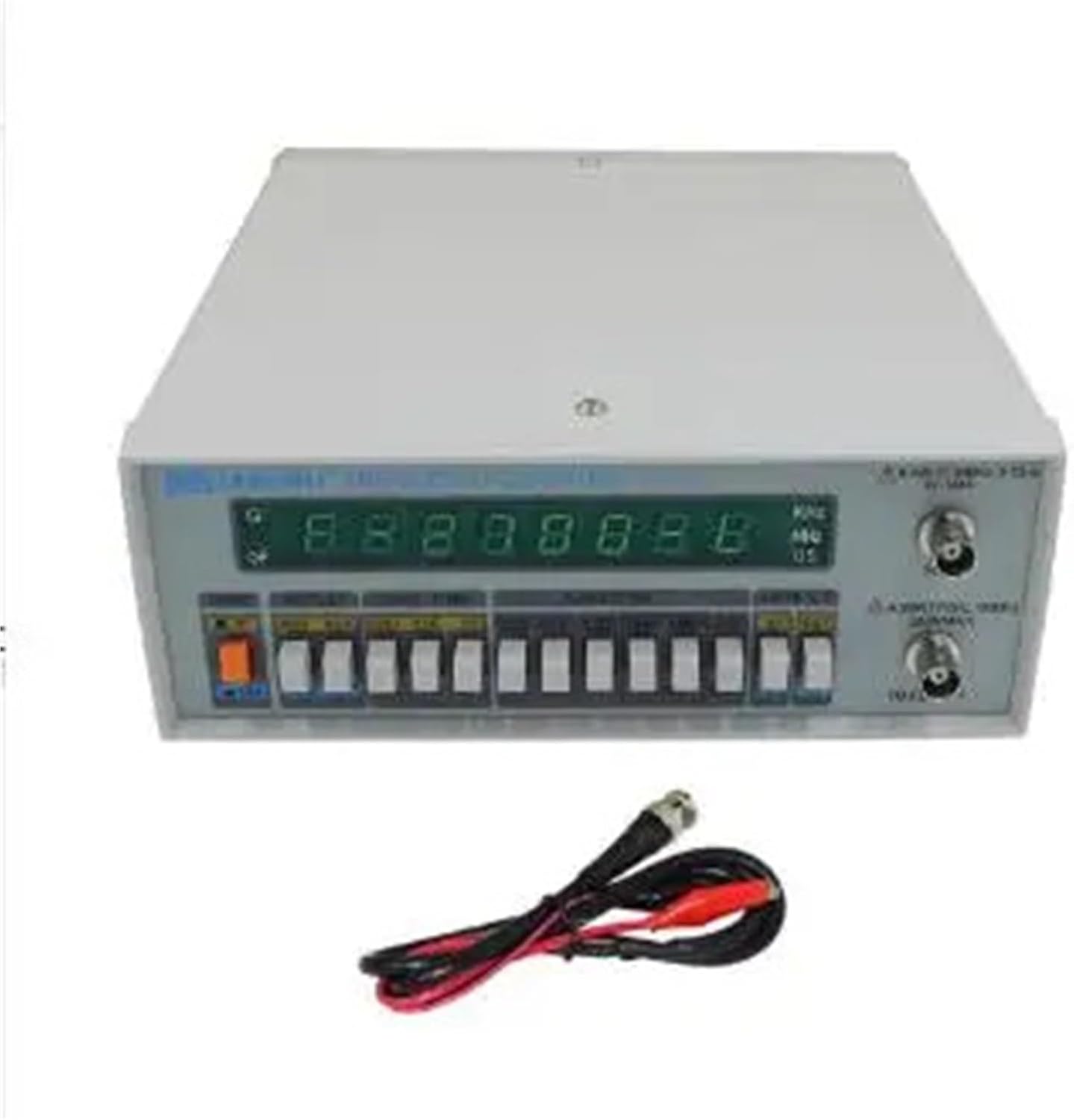

TFC-2700L Multi-Functional High Precision Frequency Meter 8 LED Display Instrument 10HZ-2.7GHZ High Resolution Frequency Counter

Specifications:1. Measurement methods(1) Frequency measurementA channelRange: 10Hz-10MHz (Direct count)10MHz-100MHz (proportion count)Direct count:1Hz ,10Hz,100Hz(your choice)proportion count:10Hz ,100Hz,1000Hz(your choice)Strobe time: 0.01s,0.1s,1s (your choice)Accuracy: ±count value± base time error ×measured frequencyB channelRange:100MHz-2.7GHzResolution:100Hz,1KHz,10KHzStrobe time:0.01s,0.1s,1sStrobe time:0.01s,0.1s,1speriod measurementInput: A channelRange: 10Hz-10MHzResolution: 10-7s, 10 -8s, 10 -9s (your choice)Accuracy: ±count value± base time error ×measured frequency(3)accumulate measurementInput: A channelRange: 10Hz-10MHzAccuracy: ±1 count impulseSelf-checkMonitor: 0-9 characters of 8 digital pipe repeatedly shows2. Input characteristics(1)A channelInput sensitivity: (10MHz) range: 10Hz-8MHz 20mVrms8MHz-10MHz 30mVrms(100MHz) range: 10MHz-8MHz 20mVrms80MHz-100MHz 30mVrmsAttenuation: ×1, ×20 fixedWave filtering: low pass, 100KHz,-3dB<;35PF)Max. Safety voltage: 250V (DC+AC rms)(2)B channelInput sensitivity: 20mVrmsImpedance: about 50 Max. Safety voltage: 3V3. Time baseTime base frequency: 10MHzShort-term stability: ±3×10-9/sLong term stability: ±2×10-5/sTemperature Coefficient: ±1×10-5, 00C-400CLine voltage: Each change ± 10%, the frequency variation ± 1 x 10-7 correspond4. Power supply voltage: 220± 10% 50Hz<;250C)6. Temperature: working temperature -50C-500CStorage and transportation temperature:-400C-600C7.Humidity:Working Humidity: 10-90% RHStorage Humidity: 5-95% RH8. Dimension: 230*200*75 mm9.Weight :2Kg

• 1. **High Precision Frequency Measurement**: The TFC-2700L Multi-Functional Frequency Meter offers exceptional accuracy for frequency measurements ranging from 10Hz to 2.7GHz, making it an essential tool for technicians and engineers.
• 2. **Versatile Measurement Methods**: With both direct and proportion count measurement options, this frequency meter allows users to select from various ranges and resolutions, including 1Hz, 10Hz, and 100Hz, ensuring flexibility in different applications.
• 3. **User-Friendly LED Display**: Featuring an 8 LED display, the TFC-2700L provides clear and easy-to-read results, enhancing usability when monitoring frequencies in real-time.
• 4. **Robust Input Characteristics**: This frequency meter supports a wide input sensitivity range, from 20mVrms up to 250V safety voltage, ensuring compatibility with various signal types while maintaining optimal performance.
• 5. **Durable and Reliable Performance**: Designed to operate within a broad temperature range of -50°C to 50°C and withstand humidity levels from 10% to 90% RH, the TFC-2700L Frequency Meter is built for long-lasting use in diverse environments.
