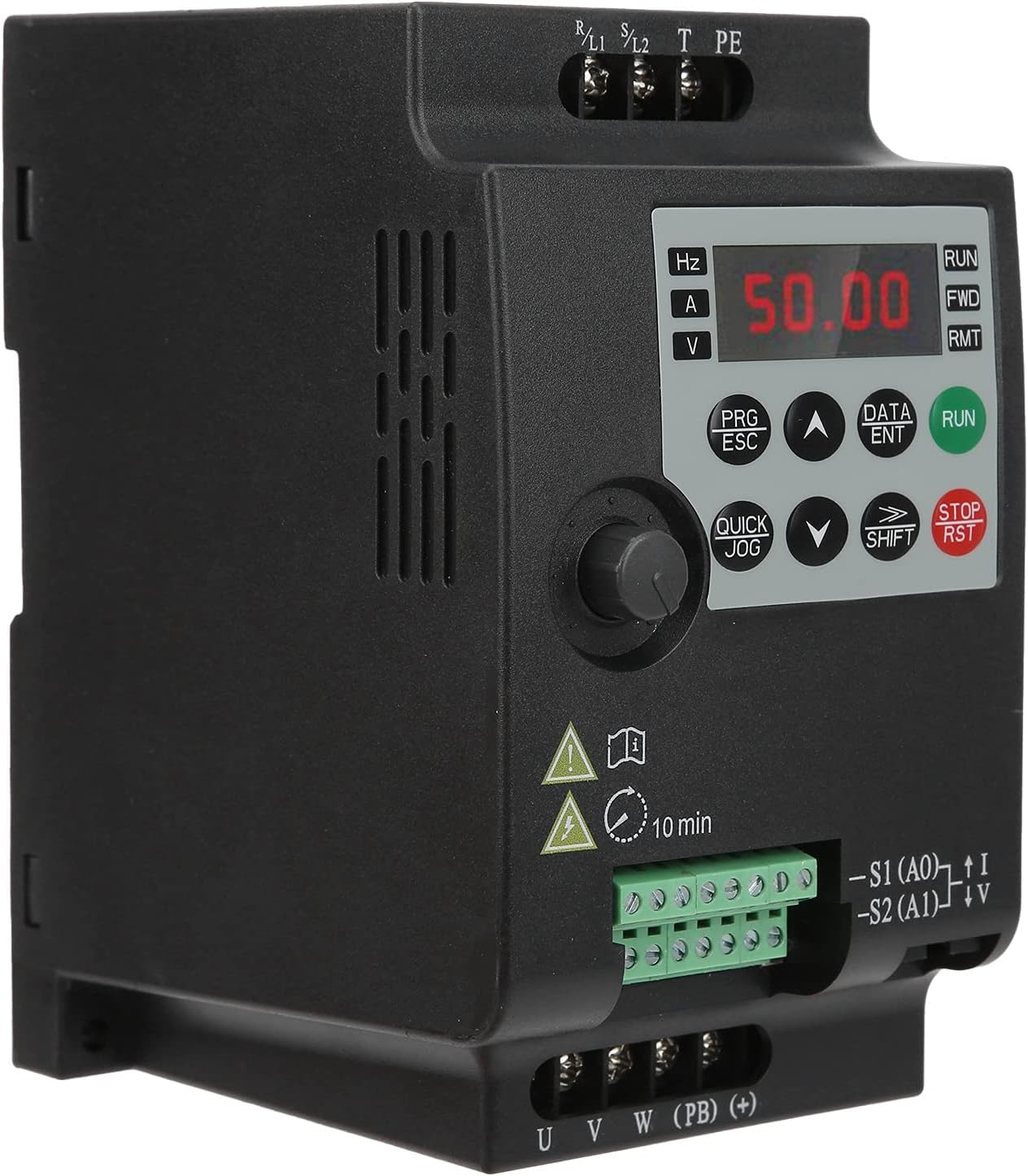

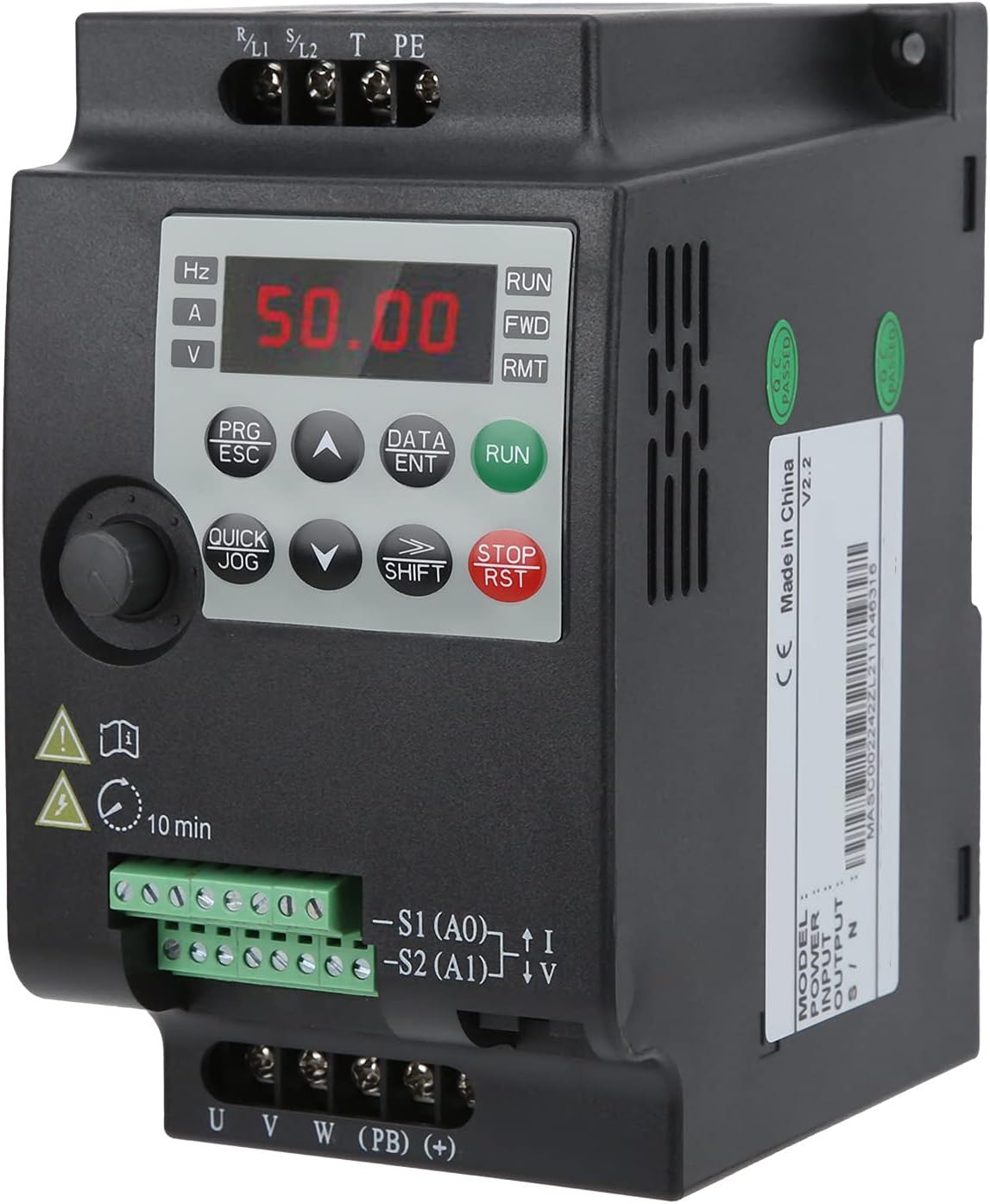

Vector Frequency Converter, 3Phase AC380480V, V F Control, PID Automatic Adjustment - Reliable Performance, Multiple Protection Functions, Easy Operation for Industrial Use (SC100-2R2G-4TB

Item Type: Vector Frequency ConverterMaterial: ABSModel AC input voltage Power（kW） Rated input current（A） Rated output current（A） Applicable motor （KW） SC100-0R7G-2SB 1‑Phase AC220--240V 0.75 8.2 4.5 0.75 SC100-1R5G-2SB 1‑Phase AC220--240V 1.5 14.2 7 1.5 SC100-2R2G-2SB 1‑Phase AC220--240V 2.2 23 10 2.2 SC100-0R7G-4TB 3‑Phase AC380V--480V 0.75 3.4 2.5 0.75 SC100-1R5G-4TB 3‑Phase AC380V--480V 1.5 5 3.7 1.5 SC100-2R2G-4TB 3‑Phase AC380V--480V 2.2 5.8 5 2.2Package List：1 x Vector Frequency Converter1 x Screwdriver1 x User ManualNote:1. The ambient temperature is ‑5℃～40℃, avoid high temperature and humidity, and the humidity is less than 90% (no condensation).2. Prevent electromagnetic interference and stay away from the source of interference.3. Prevent the intrusion of water droplets, steam, dust, cotton wool, and fine metal powder, and prevent the intrusion of oil, salt, and corrosive gases.4. It is forbidden to install in an environment containing flammable and gases, liquids and solids.5. Do not install MCBs, contactors and related capacitors or varistors on the output side, otherwise it will cause the inverter to malfunction, trip protection or damage components.6. The inverter must use an independent power source, and avoid sharing the same power source with electric welders, otherwise it will cause protection or damage to the inverter.7. In order to facilitate cooling and maintenance, the inverter must be installed vertically with enough space around to ensure smooth air circulation.8. The installation wall should be made of non‑combustible materials such as iron plates to avoid damage to the inverter caused by vibration.9. When multiple inverters are installed in the same cabinet, when they are installed up and down, pay attention to the spacing and add a baffle in the middle.

• 【Automatic Torque Boost】: Simple Vector Inverter Features Automatic Torsion Moment Increase, Enhancing Motor Performance and Efficiency
• 【PID Control】: Supports PID Automatic Adjustment for Precise Frequency Conversion, Simplifying Complex Motor Speed Management
• 【Comprehensive Protection】: Includes Overvoltage, Undervoltage, Overcurrent, Overload, and CPU Failure Safeguards to Ensure Stable Operation
• 【User-Friendly Design】: Simple Operation and Wiring with Quick Start and Stop Response, Ideal for Streamlined Industrial Applications
• 【High-Quality Components】: Built with Premium Electronic Parts for and Long-Term Reliability in Demanding Environments
