WindyNation (2pcs) 12 Volt, 225 lbs Linear Actuators + Up Down DPDT Switch + Power Supply + Mounting Brackets+ Connectors (2pcs 20" Linear Actuator, Momentary Switch)
Product details
| Management number | 220410140 | Release Date | 2026/05/03 | List Price | $95.60 | Model Number | 220410140 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Linear actuators are actuators which create motion in a straight line. Unlike a motor, which creates circular motion, a linear actuator can be used with any application that requires moving something in a straight line (e.g. up and down or side to side). Windy Nation LIN-ACT1 Series Linear Actuators are a powerful and reliable linear actuator for small to medium loads. We designed our linear actuator with pre-lubricated metal gears, pre-installed limit switches, and with an IP65 (suitable for outdoor use) water resistance rating. Included with your purchase are two linear actuators, an up/down switch, AC to DC power supply, linear actuator mounting brackets and connecting wires. There are two options for the up/down control switch: Momentary and Maintained. A momentary switch will only supply power to the actuator when the button is actively engaged by your finger. When you release the button, power is cut to the actuator and it stops. The maintained switch will continued to supply power to the actuator until it is manually turned off by the end user (A light bulb switch is a maintained switch, which means it will stay on until you turn it off).

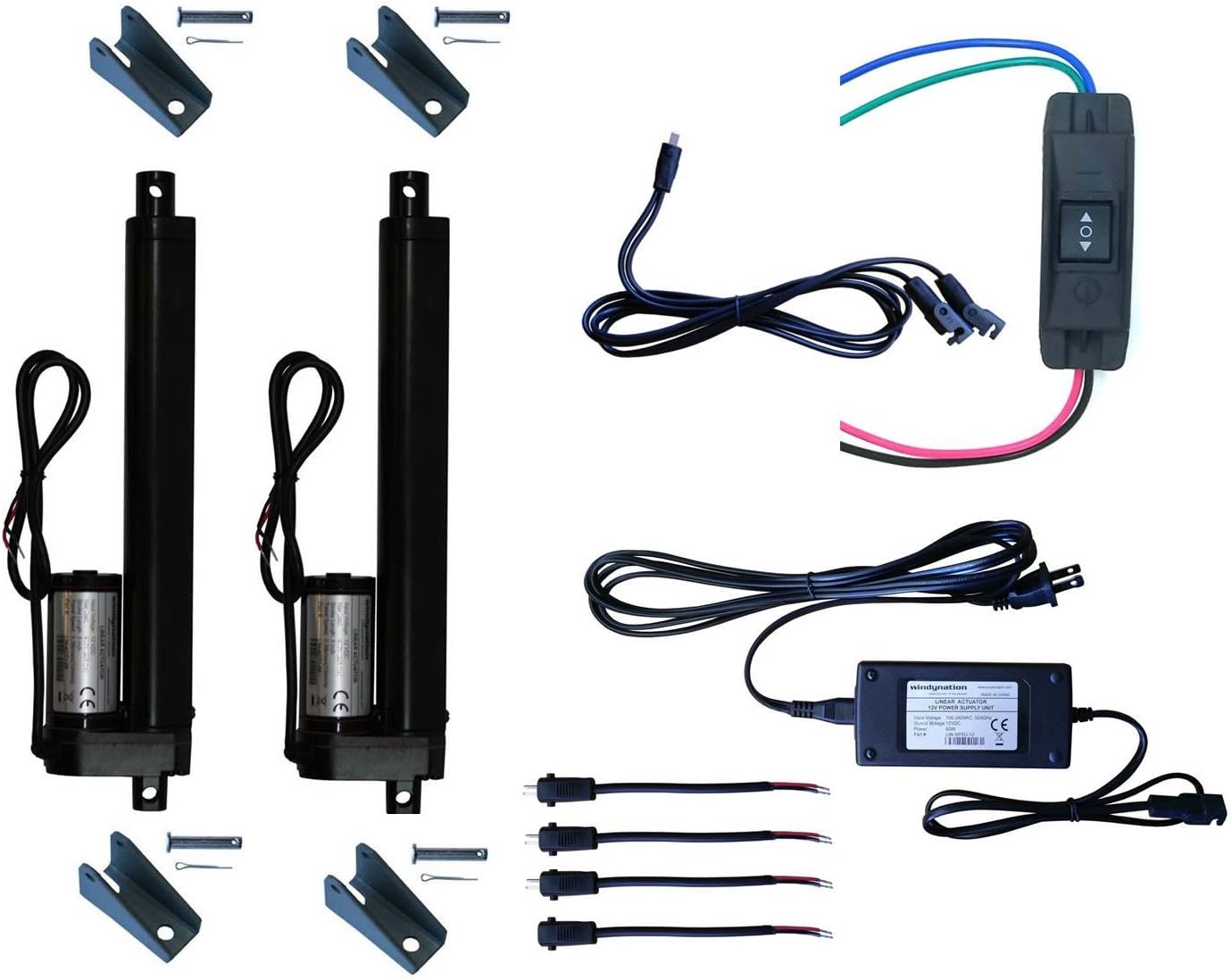

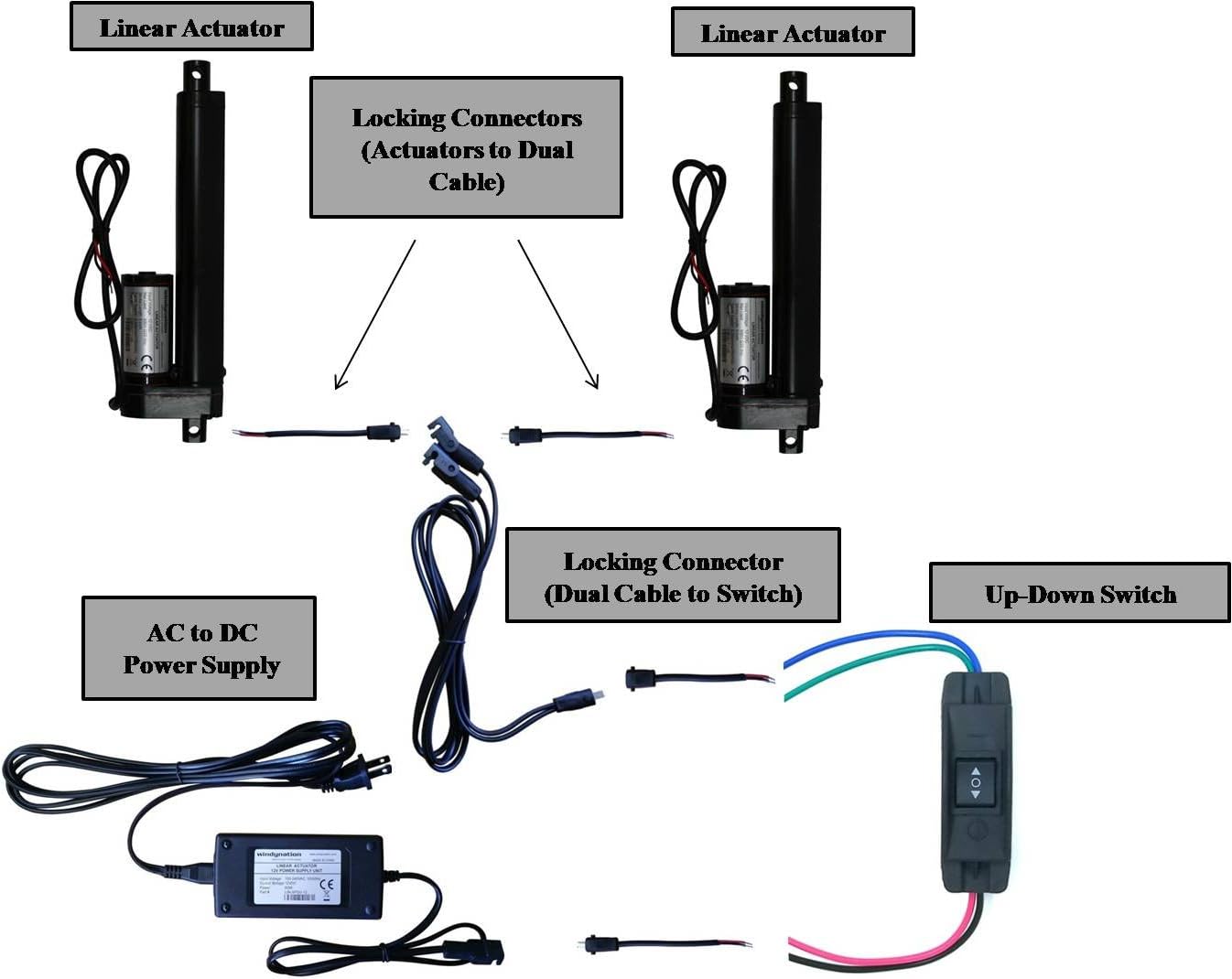

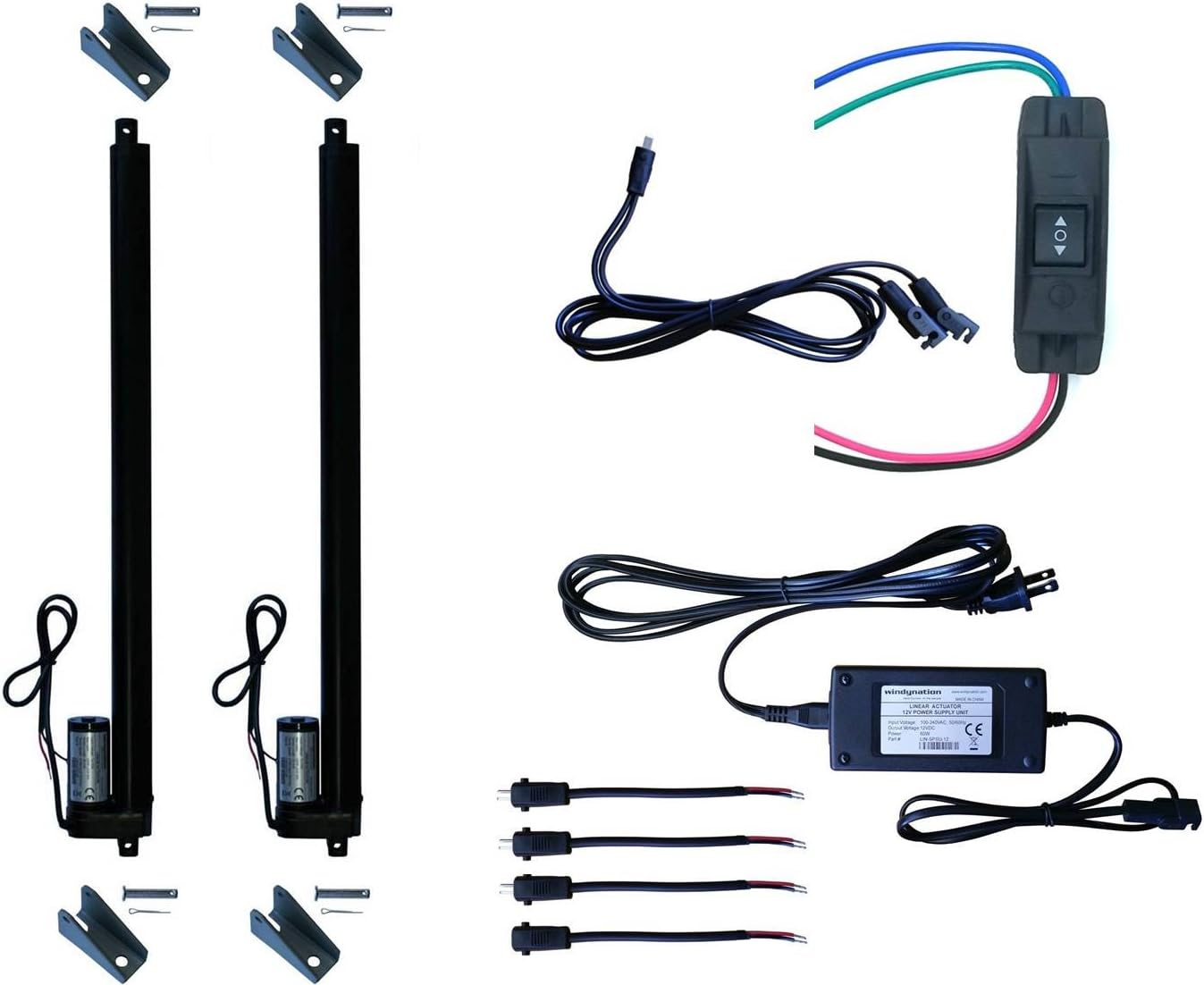

- Includes 2pcs 12 volt linear actuator (select stroke length), 1pc DPDT up/down switch, one AC to DC 12 Volt power supply, 4pcs steel mounting brackets with fasteners, and connecting wires
- Includes MOMENTARY Up/Down Switch: The actuator will only move when the up/down switch is being pressed with your finger. The moment the switch is not being pressed with your finger, the actuator will stop
- SEE IMAGES FOR DIMENSIONAL DRAWINGS AND ADDITIONAL SPECIFICATIONS
- Actuator Stroke Length = 20 inches, Travel speed = 0.39 inches/sec (10 mm/s). Actuator Maximum Dynamic Load = 225 lbs (900N), Actuator maximum current draw = 2.2 Amps
- Linear actuator is IP65 rated (suitable for outdoor use). Exterior material of linear actuator is 6061 Aluminum (powder coated black)
| Color | Momentary Switch |
|---|---|
| Wattage | 26.4 watts |
| Terminal | Dpdt |
| Brand Name | WindyNation |
| Unit Count | 2.0 Count |
| Part Number | ACT-2pcs20in-MBRKS-SWTCH-PS-M |
| Switch Type | DPDT |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Control Type | Manual |
| Manufacturer | WindyNation |
| Material Type | Aluminum |
| Mounting Type | Wall Mount |
| Connector Type | Crimp |
| Control Method | Touch |
| Current Rating | 2.2 Amps |
| Operation Mode | manual |
| Contact Material | Aluminum |
| Operating Voltage | 12 Volts |
| Specification Met | CE, ETL, REACH, RoHS, WEEE |
| Compatible Devices | PLCs, microcontrollers (Arduino, Raspberry Pi), dedicated control systems, outdoor-rated devices |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP65 |
